Residential · VIC
Ellerslie Residence

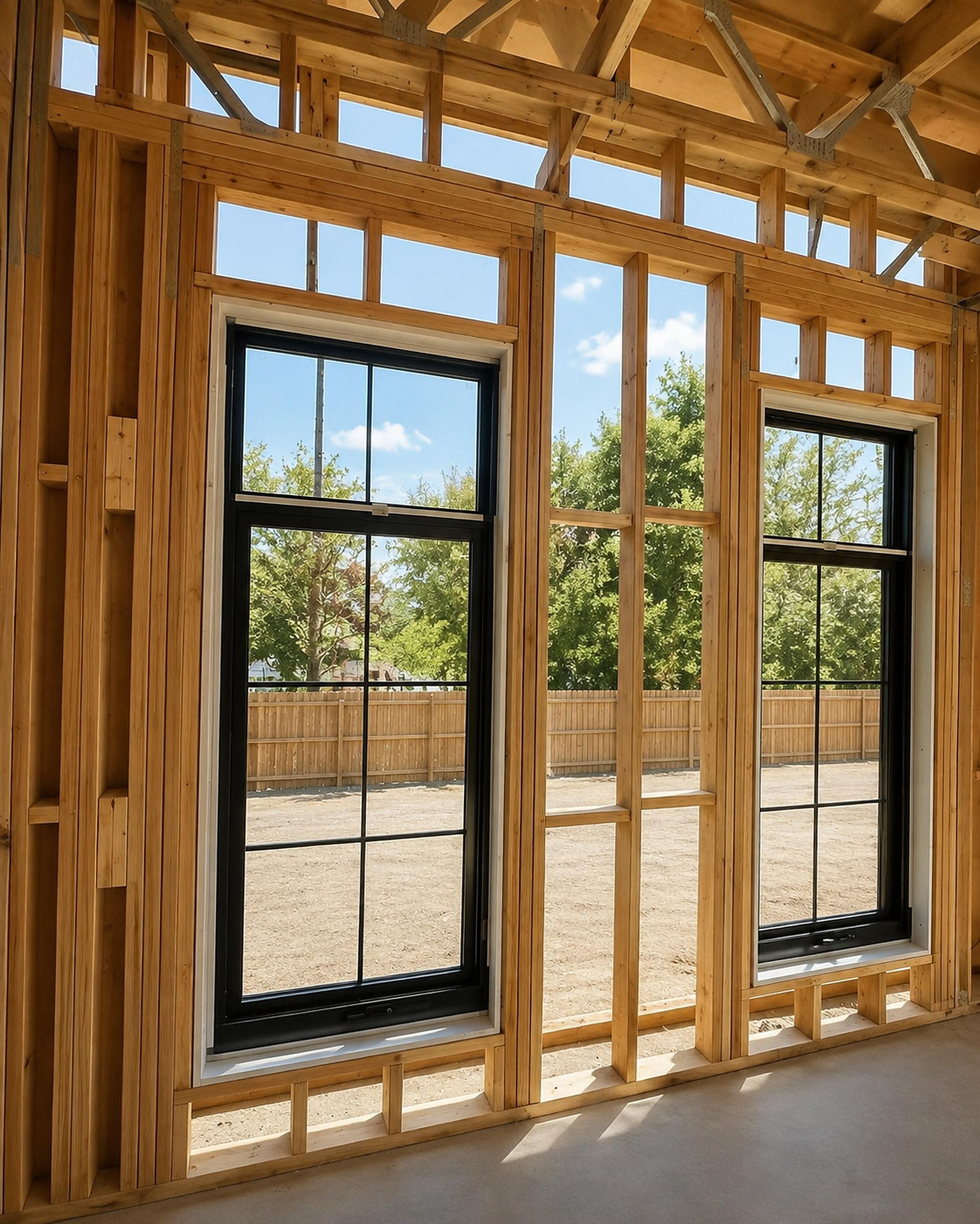

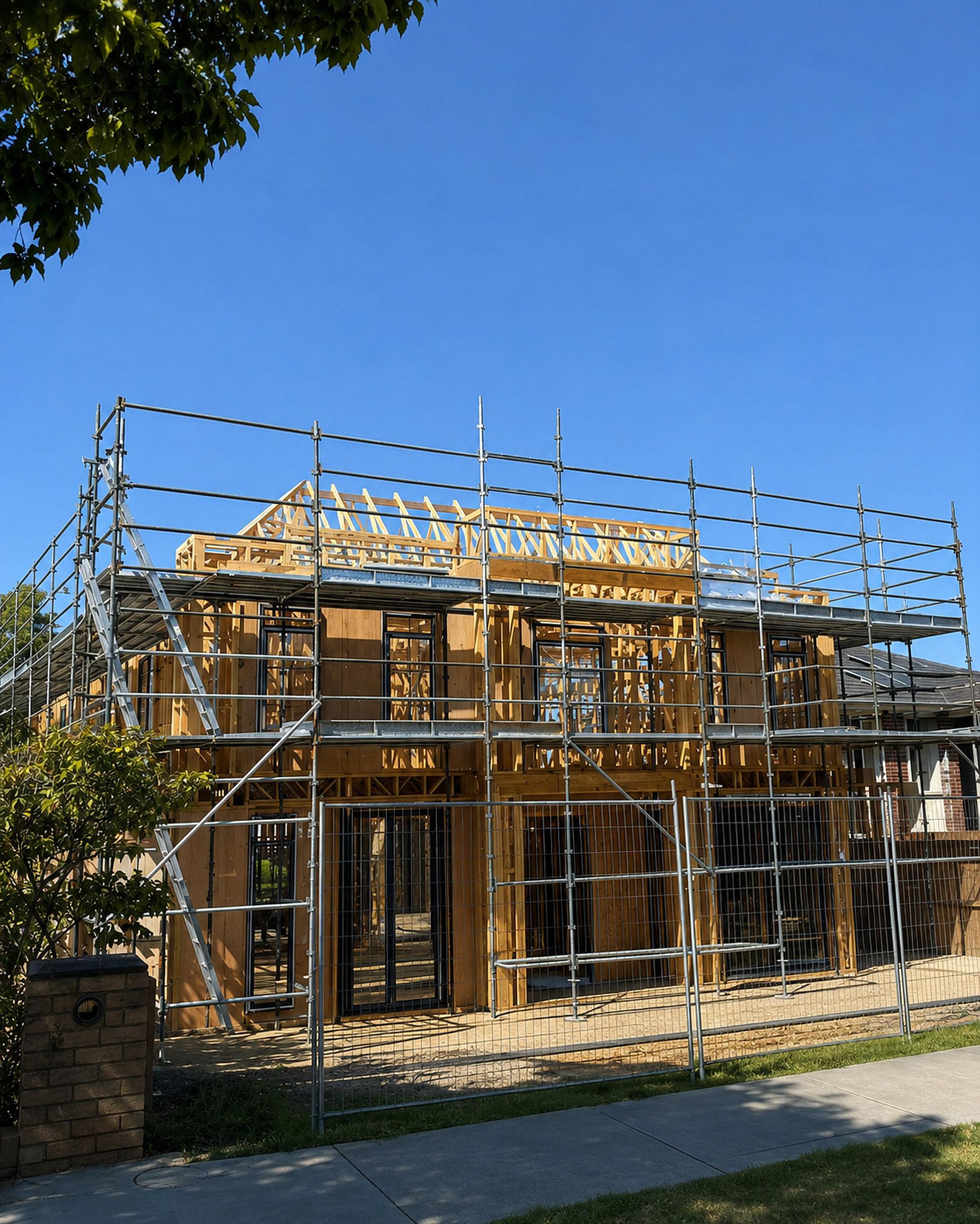

Windows and sliding doors installed into timber framing, before lining.
Project overview

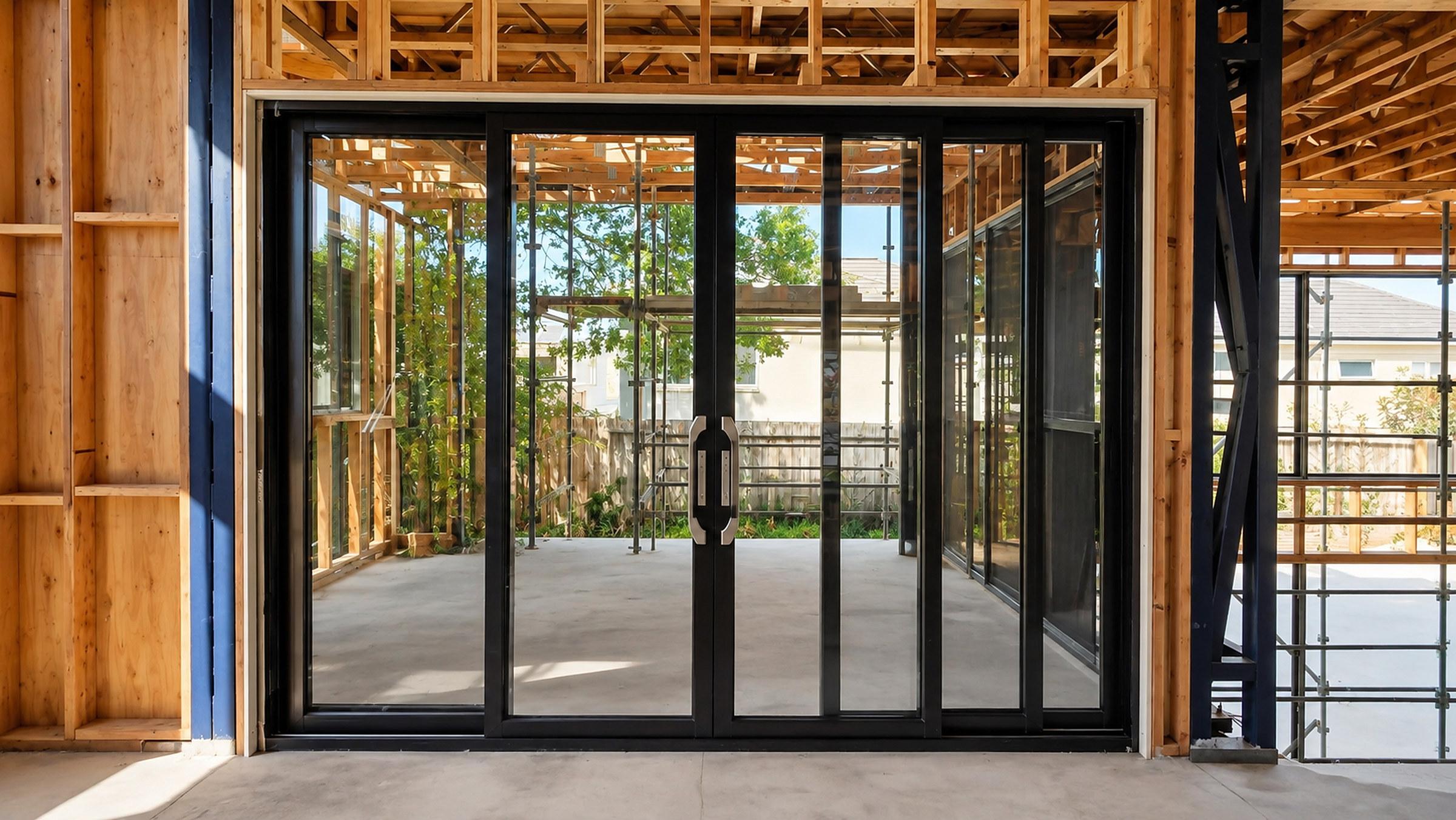

Frame stage, before anything is hidden. Square reveals, an even perimeter gap and a properly sealed head are the parts of an installation that decide whether a window performs the way it was tested to.
A certified window installed badly is an uncertified window. This is what correct looks like.
Design intent
Light and outlook
Large openings carry daylight deep into the plan and hold the view across the elevation.
Comfort and privacy
Glazing and seals selected per elevation for thermal comfort and separation from the street.
Australian conditions
Thermally broken aluminium with finishes and fixings rated for local exposure.
Systems used
Indicative of the systems in the range that suit the glazing shown. Confirmed against the opening schedule at quotation.
Trango 109 Series Casement Window with Integrated Screen
A robust thermally broken aluminium casement window with an integrated flyscreen and a 109 mm frame, offering excellent insulation and durable outward-opening operation.
View productTrango 150 Series Heavy-Duty Sliding Door
A heavy-duty thermally broken aluminium sliding door for large openings, with large-handle mortise locking and big glass panels for indoor-outdoor living.
View product
Thermally broken frames
Comfort and energy efficiency across the frame.
Coastal-grade aluminium
Durable finishes for exposed environments.
Slim sightlines
More glass in the opening, less frame.
Certified
AS 2047 and AS 1288 compliant systems.
