Thermal performance

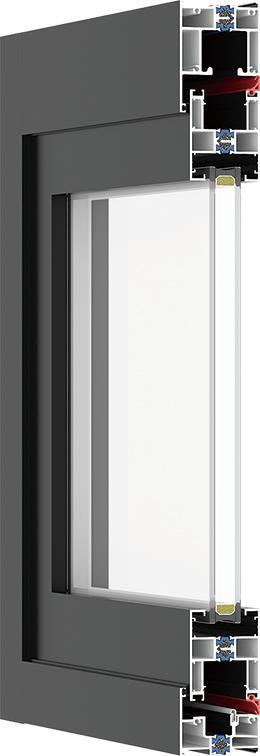

A 14.8 mm thermal barrier holds temperature across the frame.
Slim sightlines
glass sash 70 mm. More glass in the opening, less frame across the view.
Glazing options
Double glazed unit: 5 mm glass / 18 mm air / 5 mm glass
Certified performance
Certified to AS 2047. Certificate available on request.
Specifications
- Profile wall thickness
- 2.0 mm
- Frame width
- 66.3 mm
- Sightline
- glass sash 70 mm

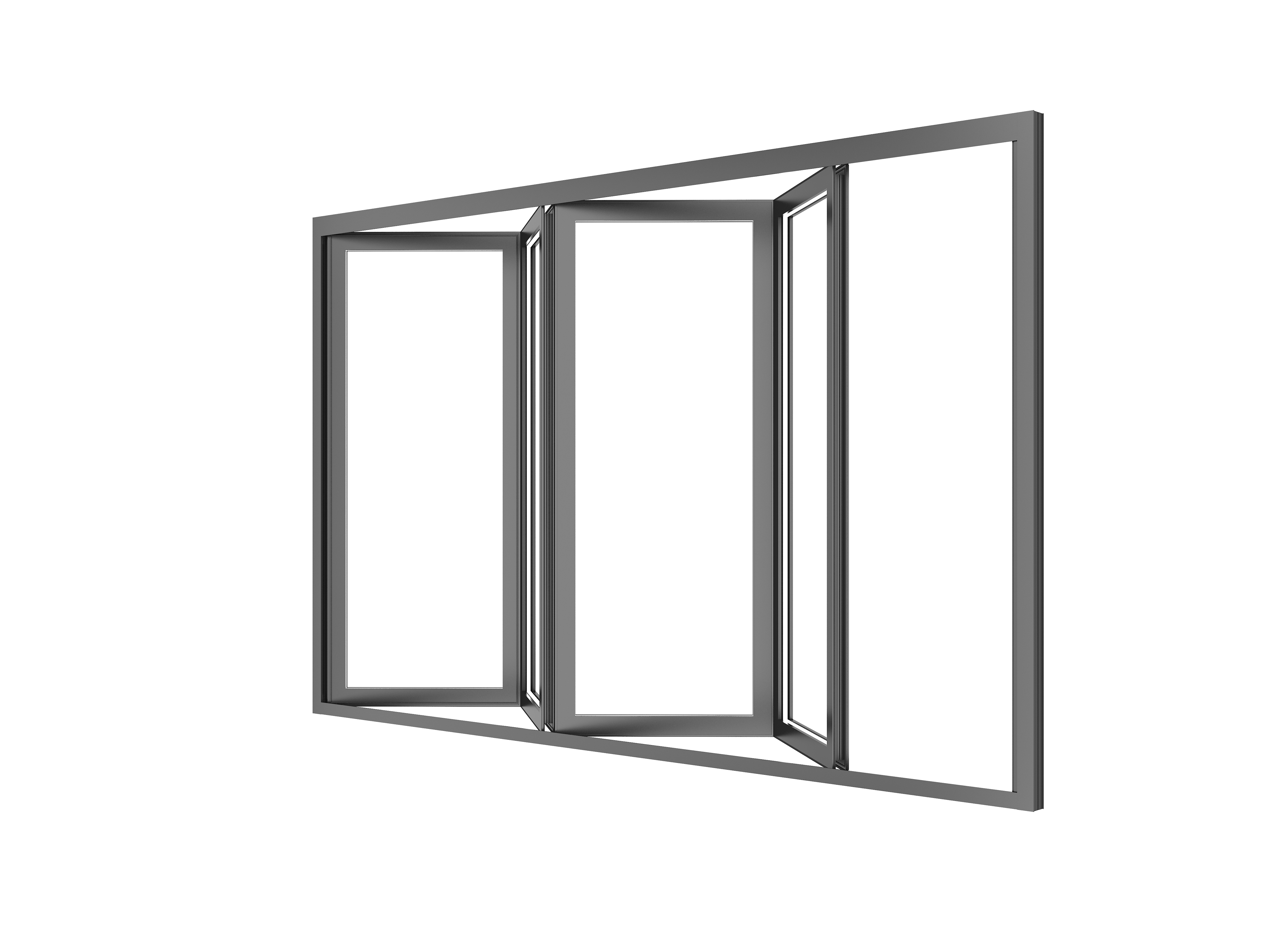

- Available opening style
- left and right folding
- Opening direction
- outward folding / inward folding
- Standard glass
- 5+18A+5 (fluorocarbon-coated aluminium spacer)
- Thermal barrier strip width
- 14.8 mm
- Glazing method
- Double glazed unit: 5 mm glass / 18 mm air / 5 mm glass
- Thermal barrier
- Thermally broken, 14.8 mm
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
This system has been tested and we hold the report. The figures are not transcribed onto this page, so rather than publish a number we cannot show the working for, ask us and we will send you the report itself.
Request the test reportTechnical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
Have a project in mind?
Our team can specify the right system for the opening and the elevation.
