Awning & Casement Windows
Crank-out ventilation and clean, unobstructed views.
11 systems in this range.

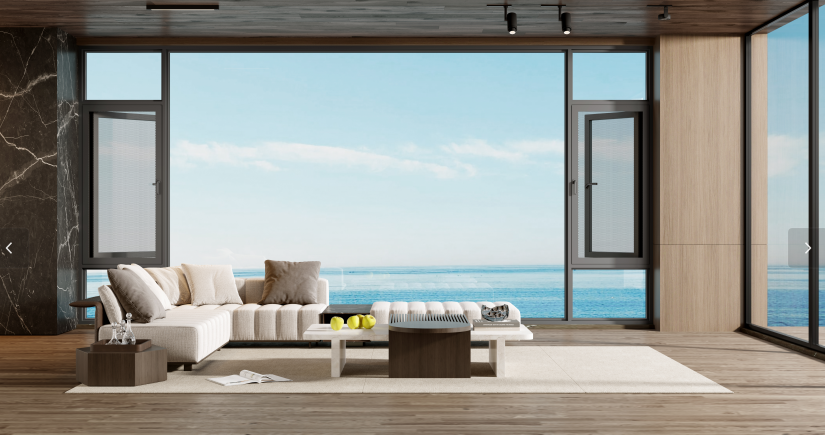

Trango 109 Series
Trango 109 Series Casement Window with Integrated Screen
A robust thermally broken aluminium casement window with an integrated flyscreen and a 109 mm frame, offering excellent insulation and durable outward-opening operation.
- Frame width
- 109 mm
- Thermal barrier
- Thermally broken
Trango 119 Series
Trango 119 Series Casement Window with Integrated Screen
A premium thermally broken aluminium casement window with a built-in flyscreen and a substantial 119 mm frame, engineered for strong thermal performance and year-round insect-free ventilation.
- Frame width
- 119 mm
- Sightline
- screen sash 56 mm, glass sash 78.6 mm
- Thermal barrier
- Thermally broken

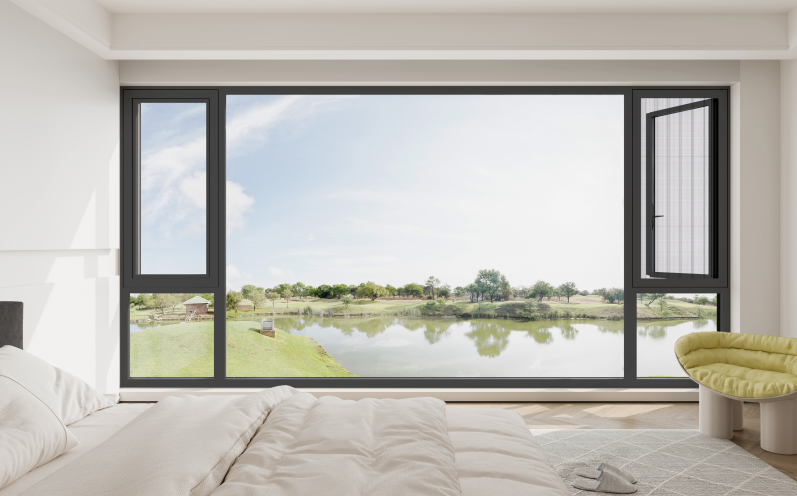

Trango E8 Series
Trango E8 Series Casement Window with Hidden Screen
A thermally broken casement window with a concealed folding flyscreen tucked neatly into the frame for clean sightlines and uninterrupted views.
- Frame width
- 88 mm
- Sightline
- glass sash 20 mm
- Thermal barrier
- Thermally broken

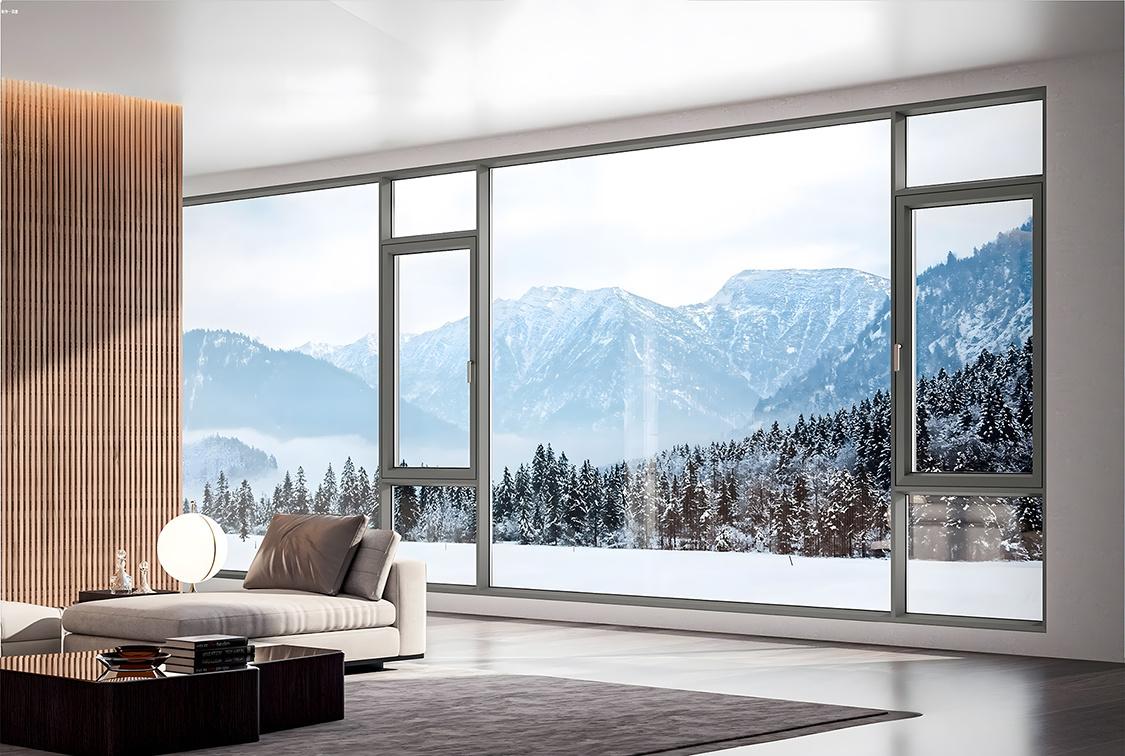

Trango 50 Series
Trango 50 Series Outward Casement Window
An economical aluminium casement window (non-thermally-broken) with a compact 50 mm frame - a cost-effective choice for milder climates and budget-conscious projects.
- Frame width
- 50 mm
- Sightline
- glass sash 66.7 mm
- Thermal barrier
- Not thermally broken

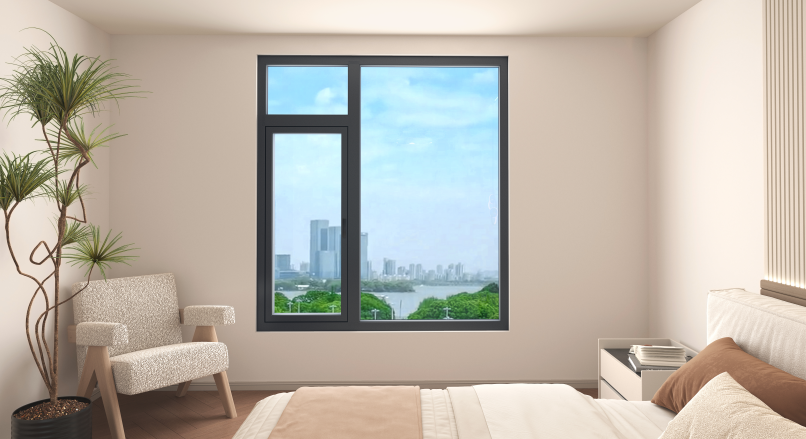

Trango 58 Series
Trango 58 Series Outward Casement Window
A slimline thermally broken aluminium casement window with an ultra-narrow 27 mm sightline, maximising glass area and natural light while retaining thermal-break efficiency.
- Frame width
- 56.9 mm
- Sightline
- glass sash 27 mm
- Thermal barrier
- Thermally broken

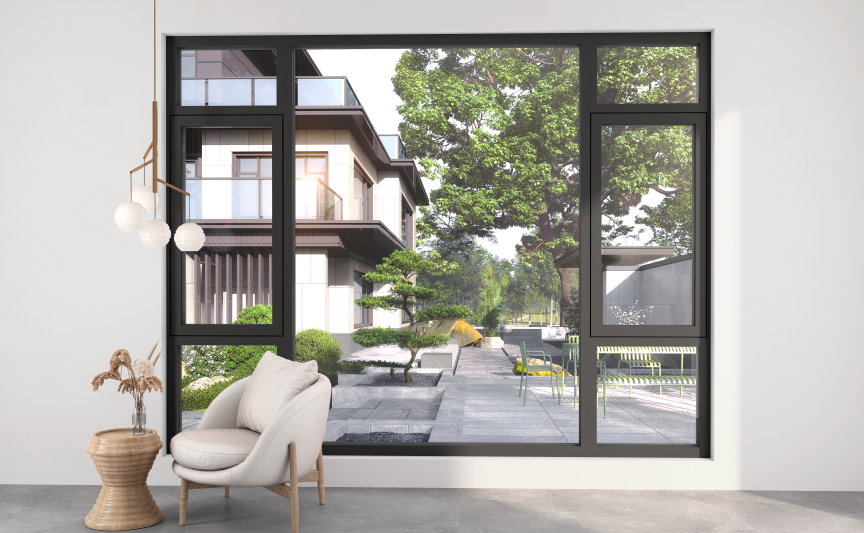

Trango 90 Series
Trango 90 Series Narrow-Frame Outward Casement Window
A thermally broken slimline casement window with a 20 mm sightline, blending minimalist aesthetics with double-glazed thermal performance.
- Frame width
- 88 mm
- Sightline
- glass sash 20 mm
- Thermal barrier
- Thermally broken

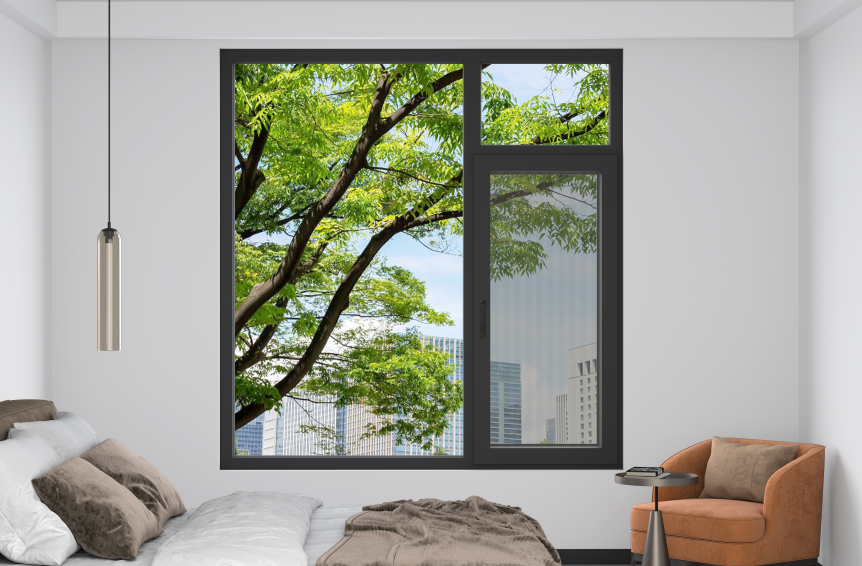

Trango 110 Series
Trango 110 Series Casement Window with Integrated Screen
A thermally broken aluminium casement window with an integrated flyscreen and slim 27 mm glass sightlines, balancing light, insulation and insect protection.
- Frame width
- 110 mm
- Sightline
- screen sash 56 mm, glass sash 27 mm
- Thermal barrier
- Thermally broken

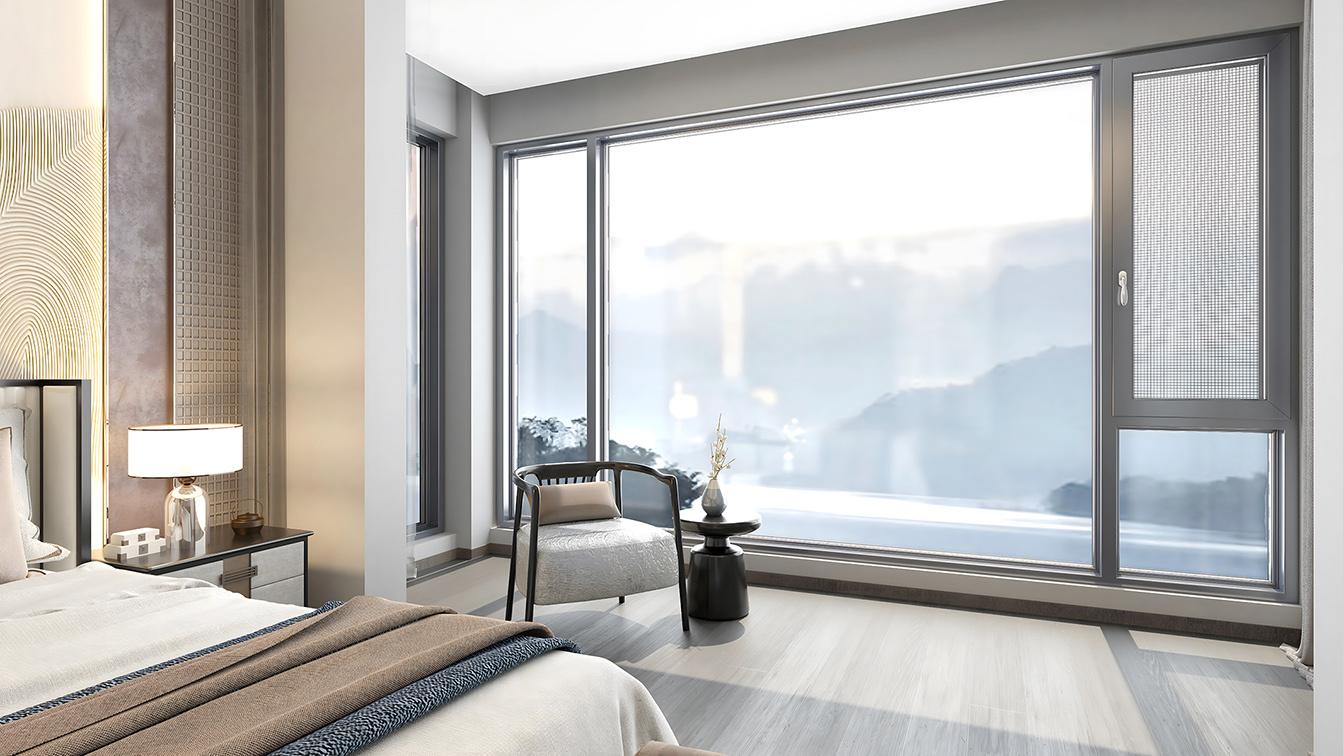

Trango 113 Series
Trango 113 Series Casement Window with Integrated Screen
A heavy-duty thermally broken casement window with integrated flyscreen, wide thermal barriers and stainless-steel mesh for demanding, high-performance applications.
- Frame width
- 111.5 mm
- Sightline
- screen sash 56 mm, glass sash 72 mm
- Thermal barrier
- Thermally broken

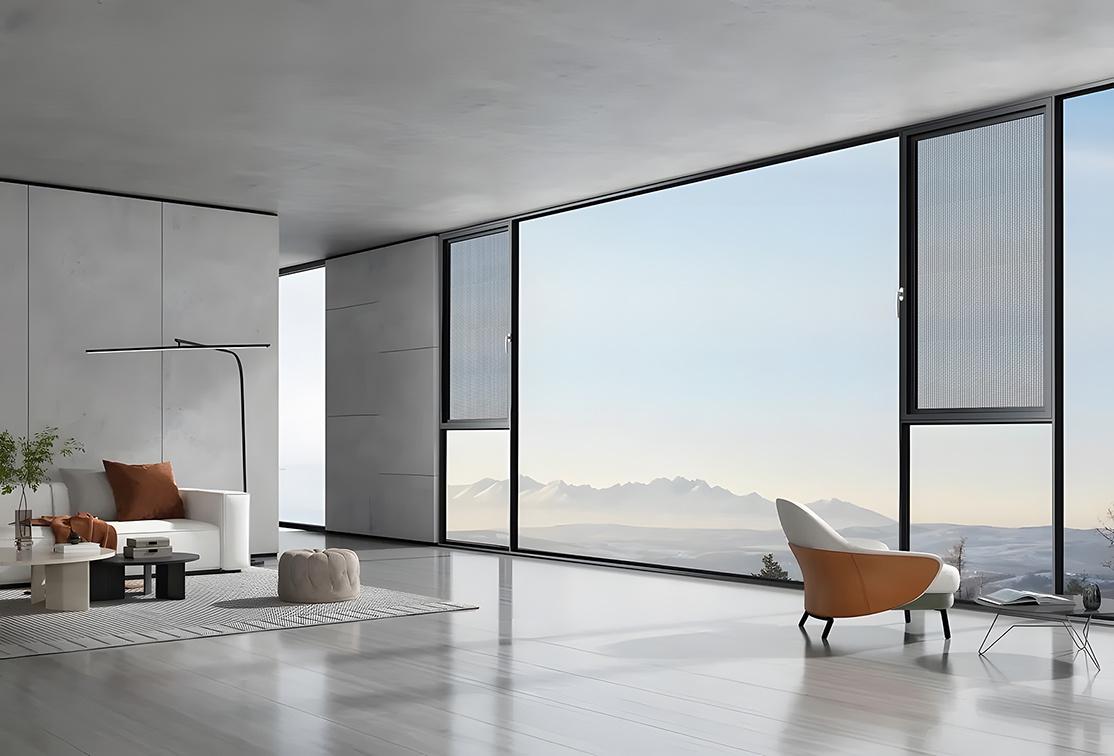

Trango 127 Series
Trango 127 Series Casement Window with Integrated Screen
A flagship thermally broken casement window with an integrated flyscreen and triple glazing (5+18A+5+18A+5) for superior thermal and acoustic insulation.
- Frame width
- 125.5 mm
- Sightline
- screen sash 56 mm, glass sash 72 mm
- Thermal barrier
- Thermally broken

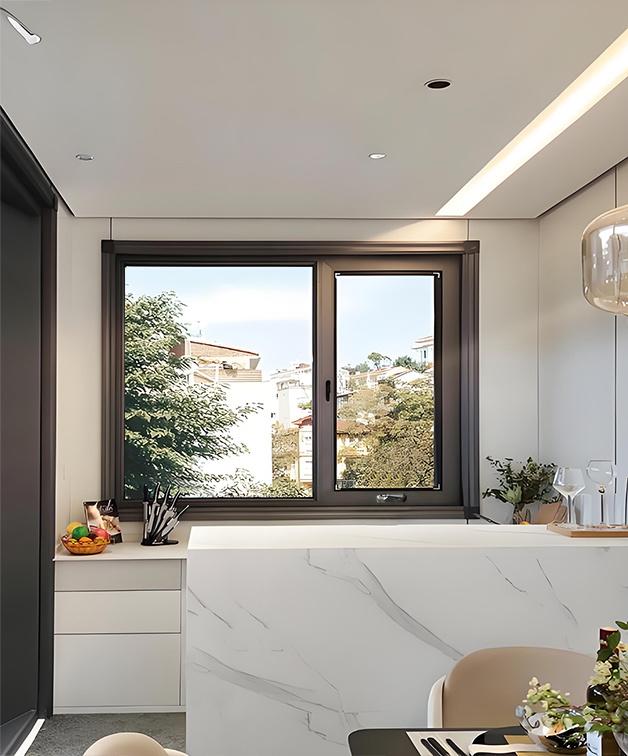

Trango T8 Series
Trango T8 Series American-Style Crank-Out Window
A thermally broken American-style awning/casement window with smooth crank-out operation and a detachable flyscreen, ideal for easy one-handed ventilation.
- Frame width
- 107 mm
- Sightline
- glass sash 20 mm
- Thermal barrier
- Thermally broken
Photography to come
Trango 86 Series
Trango 86 Series Casement Window
An 86 mm casement window with chain-winder operation, certified to AS 2047. Its test returned 2500 Pa serviceability wind pressure, the highest serviceability figure on any Trango system published here, alongside 720 Pa water resistance.
- Frame width
- 86 mm
The range, side by side
The same fields for every system in this range. Every system is certified to AS 2047 and every one has been tested; where a report number is listed, that document is the one on file. A figure shown as not published is one we have not transcribed onto this site. Ask and we will send you the report.
| System | Thermal break | Glazing | U-value (Uw) | Acoustic | AS 2047 | Frame width | Sightline |
|---|---|---|---|---|---|---|---|
| Trango 109 Series | Thermally broken | Not published | Not published | Not published | Certified | 109 mm | Not published |
| Trango 119 Series | Thermally broken | Not published | Not published | Not published | Certified | 119 mm | screen sash 56 mm, glass sash 78.6 mm |
| Trango E8 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 88 mm | glass sash 20 mm |
| Trango 50 Series | Not thermally broken | Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass | Not published | Not published | Certified | 50 mm | glass sash 66.7 mm |
| Trango 58 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | Certified | 56.9 mm | glass sash 27 mm |
| Trango 90 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 88 mm | glass sash 20 mm |
| Trango 110 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | 1.99 W/m²K | Rw 35 | 251010052GZC-001 | 110 mm | screen sash 56 mm, glass sash 27 mm |
| Trango 113 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | 1.99 W/m²K | Rw 35 | Certified | 111.5 mm | screen sash 56 mm, glass sash 72 mm |
| Trango 127 Series | Thermally broken | Triple glazed unit: 5 / 18 mm air / 5 / 18 mm air / 5 mm | Not published | Not published | Certified | 125.5 mm | screen sash 56 mm, glass sash 72 mm |
| Trango T8 Series | Thermally broken | Double glazed unit: 5 mm glass / 27 mm air / 5 mm glass | Not published | Not published | Certified | 107 mm | glass sash 20 mm |
| Trango 86 Series | Not published | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | AZHK260418 | 86 mm | Not published |
Technical documents for this range.
Drawings, manuals and certificates are issued on request, so the revision you receive is the current one.
Not sure which system fits?
Send your drawings and we will specify the right one for the opening.
