Sliding Windows
Smooth-gliding sashes and a contemporary, low-profile look.
4 systems in this range.

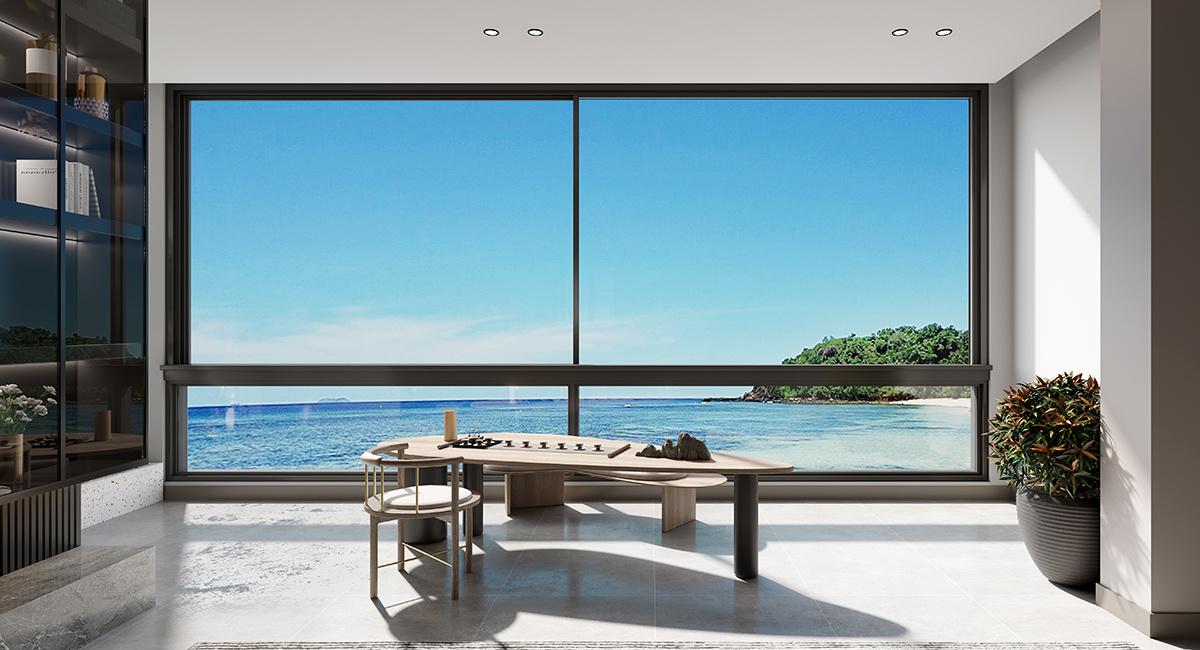

Trango 105 Series
Trango 105 Series Ultra-Narrow Sliding Window
A thermally broken slimline sliding window with narrow 35 mm sightlines, delivering smooth operation and a contemporary minimalist look.
- Frame width
- two-track 104 mm, three-track 104 mm
- Sightline
- middle meeting rail 35 mm
- Thermal barrier
- Thermally broken
Trango 142 Series
Trango 142 Series Ultra-Narrow Sliding Window
A thermally broken slimline sliding window with ultra-narrow 35 mm meeting rails, available in 2- and 3-track configurations for expansive, light-filled openings.
- Frame width
- two-track 104 mm, three-track 141.5 mm
- Sightline
- middle meeting rail 35 mm
- Thermal barrier
- Thermally broken

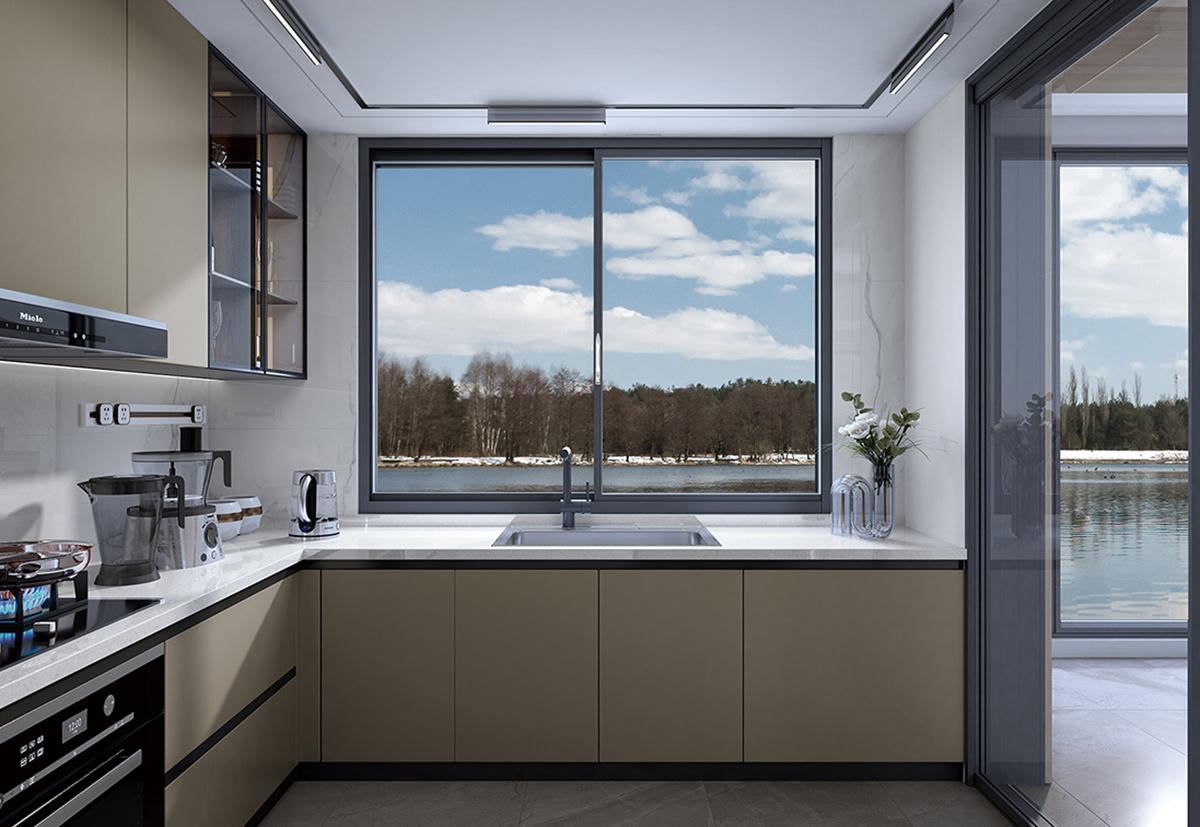

Trango 110 Series
Trango 110 Series Sliding Window
A versatile aluminium sliding window (non-thermally-broken) in 2- and 3-track configurations - a practical, value-oriented option for everyday openings.
- Frame width
- two-track 74 mm, three-track 110 mm
- Sightline
- middle meeting rail 32 mm
- Thermal barrier
- Not thermally broken

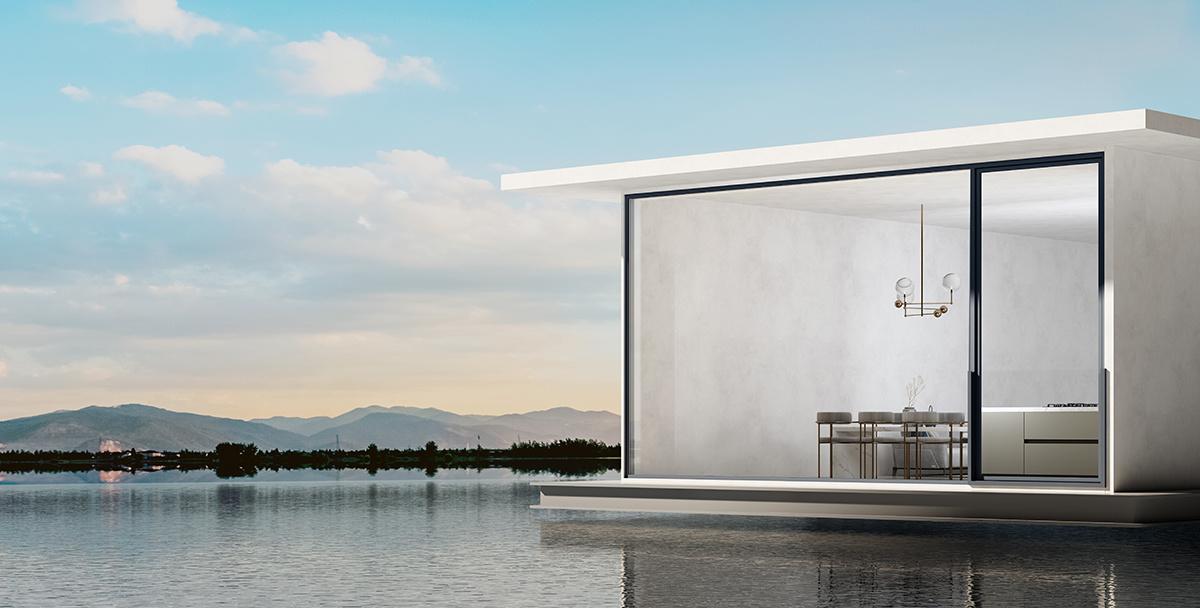

Trango 115 Series
Trango 115 Series Side-Press Sliding Window
A thermally broken side-press sliding window with premium HOPPE hardware and typhoon-resistant pulleys, engineered for tight sealing and heavy-duty performance.
- Frame width
- 115 mm
- Sightline
- central meeting rail 52.5 mm
- Thermal barrier
- Thermally broken
The range, side by side
The same fields for every system in this range. Every system is certified to AS 2047 and every one has been tested; where a report number is listed, that document is the one on file. A figure shown as not published is one we have not transcribed onto this site. Ask and we will send you the report.
| System | Thermal break | Glazing | U-value (Uw) | Acoustic | AS 2047 | Frame width | Sightline |
|---|---|---|---|---|---|---|---|
| Trango 105 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | Certified | two-track 104 mm, three-track 104 mm | middle meeting rail 35 mm |
| Trango 142 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | Certified | two-track 104 mm, three-track 141.5 mm | middle meeting rail 35 mm |
| Trango 110 Series | Not thermally broken | Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass | 3.52 W/m²K | Rw 30 | AZHK260411 | two-track 74 mm, three-track 110 mm | middle meeting rail 32 mm |
| Trango 115 Series | Thermally broken | Double glazed unit: 5 mm glass / 20 mm air / 5 mm glass | Not published | Not published | 250828093GZC-001 | 115 mm | central meeting rail 52.5 mm |
Technical documents for this range.
Drawings, manuals and certificates are issued on request, so the revision you receive is the current one.
Not sure which system fits?
Send your drawings and we will specify the right one for the opening.
