Hinged Doors (Outward Opening)
Reliable entry and patio doors that swing clear of the room.
5 systems in this range.

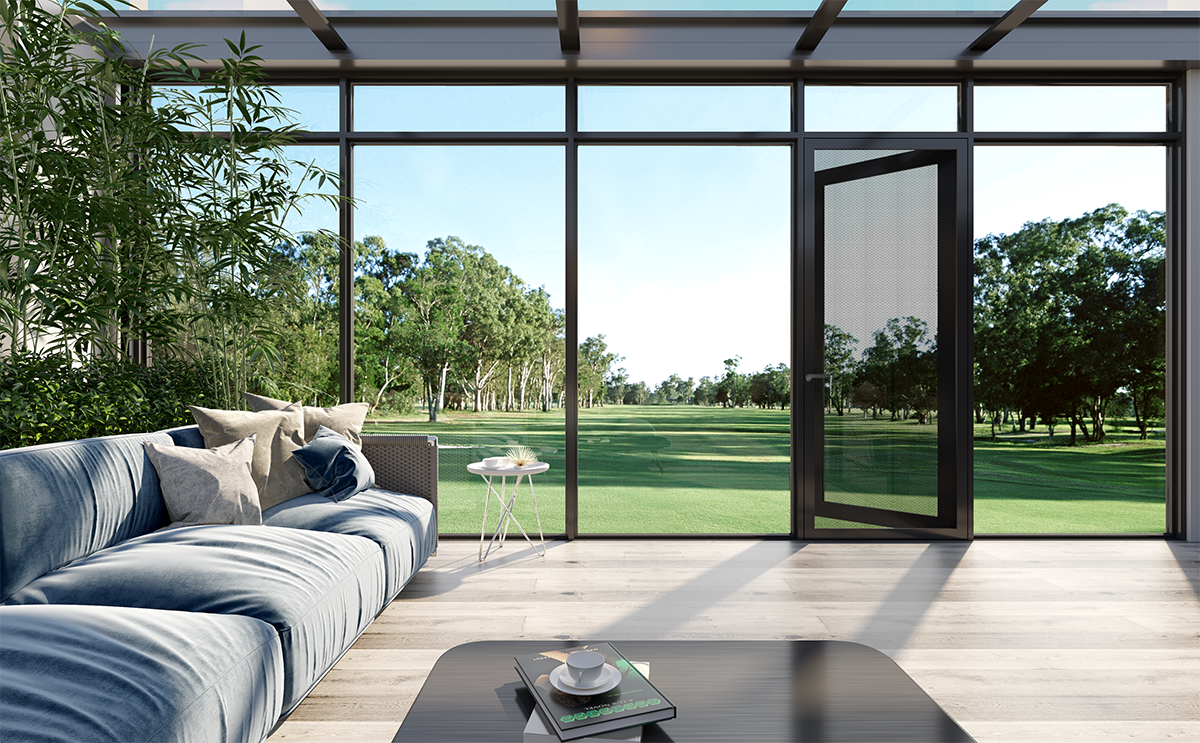

Trango 109 Series
Trango 109 Series Outward Hinged Door with Integrated Screen
A thermally broken aluminium hinged door with integrated flyscreen and multiple opening modes, balancing ventilation, insulation and insect protection.
- Frame width
- 109 mm
- Thermal barrier
- Thermally broken
Trango 88 Series
Trango 88 Series Outward Hinged Door
A thermally broken aluminium hinged door with a robust 88 mm frame and 2.2 mm sash walls, available as single, double or unequal-double - a solid entry or patio door for the Australian climate.
- Frame width
- 88 mm
- Sightline
- glass sash 93 mm
- Thermal barrier
- Thermally broken

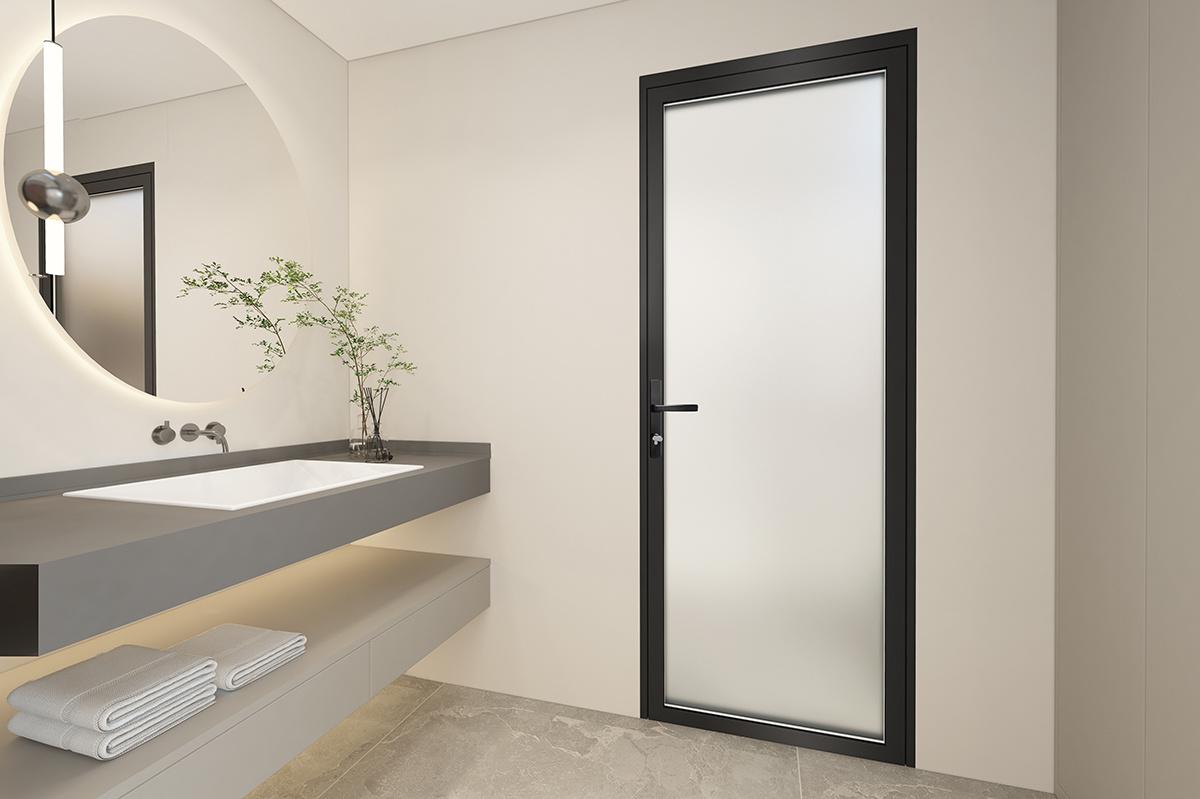

Trango 58 Series
Trango 58 Series Outward Hinged Door
A slimline thermally broken aluminium hinged door with narrow 43.5 mm sightlines, maximising glass for light-filled entries and patios.
- Frame width
- 56.9 mm
- Sightline
- glass sash 43.5 mm
- Thermal barrier
- Thermally broken

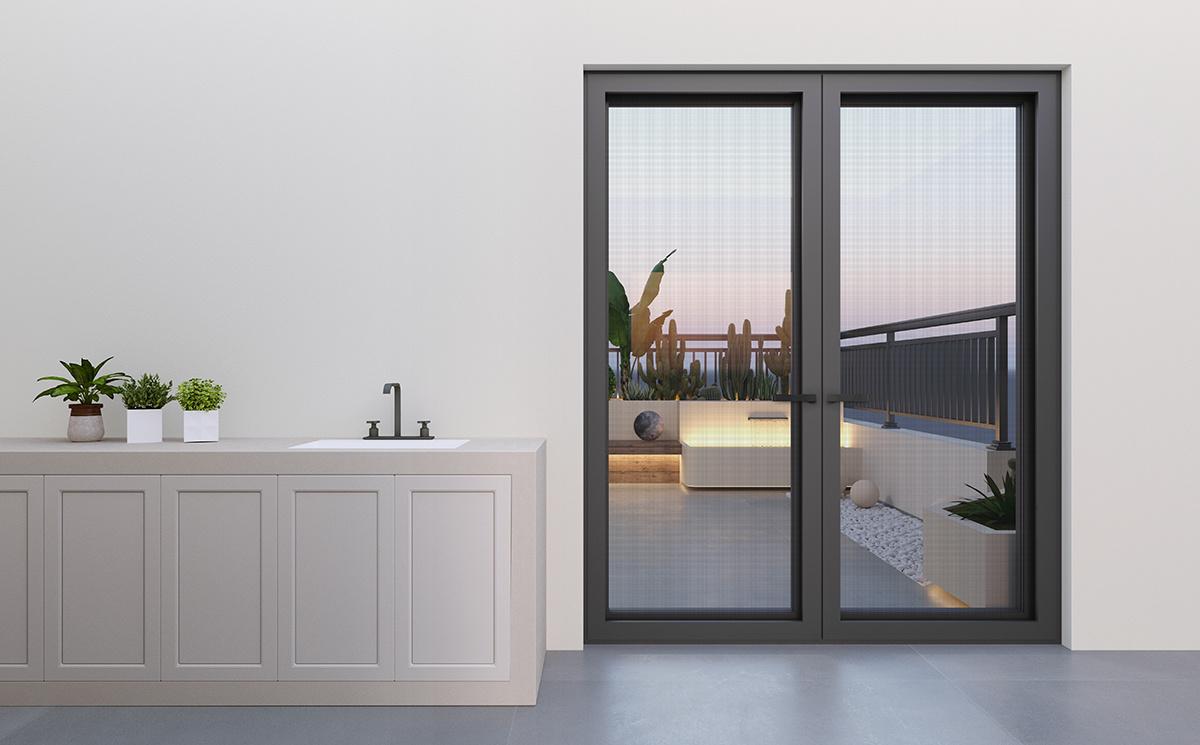

Trango 110 Series
Trango 110 Series Outward Hinged Door with Integrated Screen
A thermally broken aluminium hinged door with an integrated inward-opening flyscreen, combining outward-opening operation with year-round insect protection.
- Frame width
- 110 mm
- Sightline
- glass sash 43.5 mm
- Thermal barrier
- Thermally broken

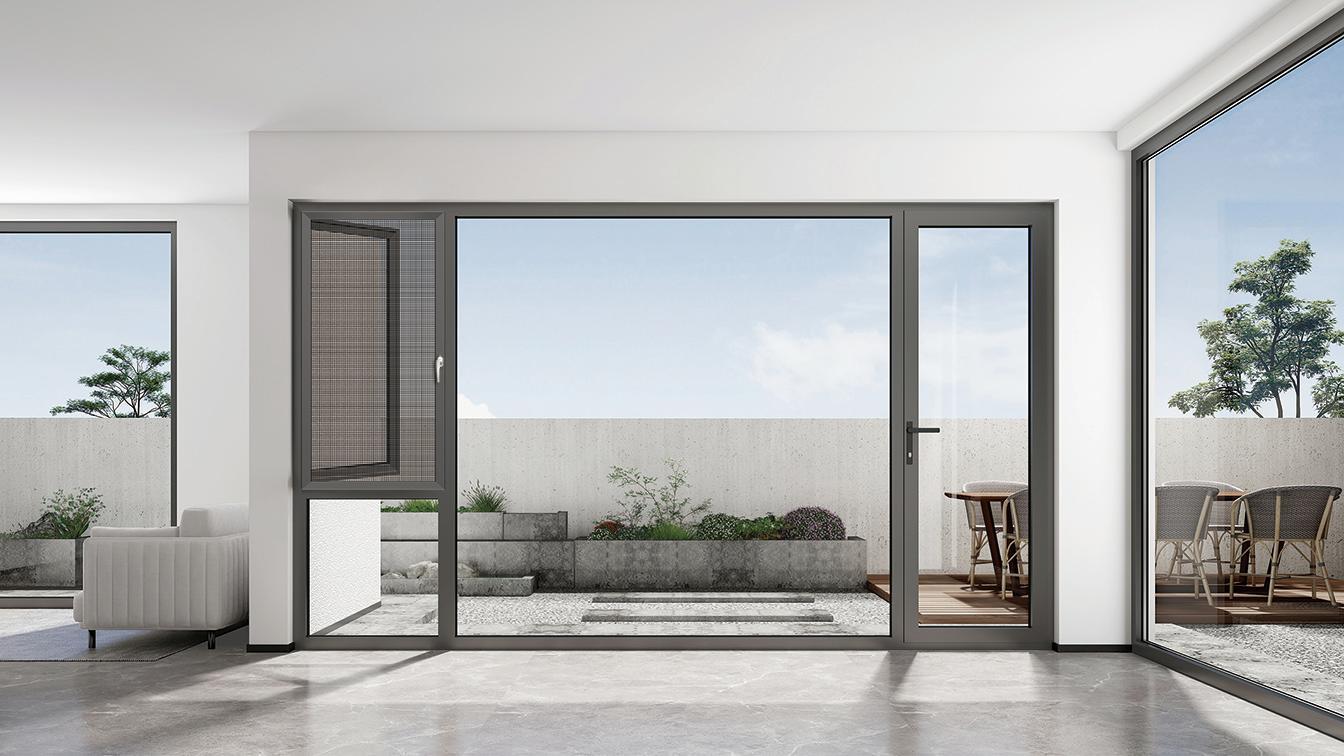

Trango 113 Series
Trango 113 Series Outward Hinged Door with Integrated Screen
A premium thermally broken aluminium hinged door with integrated flyscreen and double glazing, built for high-traffic patio and entry openings.
- Frame width
- 111.5 mm
- Sightline
- screen sash 56 mm, glass sash 72 mm
- Thermal barrier
- Thermally broken
The range, side by side
The same fields for every system in this range. Every system is certified to AS 2047 and every one has been tested; where a report number is listed, that document is the one on file. A figure shown as not published is one we have not transcribed onto this site. Ask and we will send you the report.
| System | Thermal break | Glazing | U-value (Uw) | Acoustic | AS 2047 | Frame width | Sightline |
|---|---|---|---|---|---|---|---|
| Trango 109 Series | Thermally broken | Double glazed unit: 5 mm / 20 mm air / 5 mm | Not published | Not published | SMK41714 | 109 mm | Not published |
| Trango 88 Series | Thermally broken | Double glazed unit: 5 mm / 27 mm air / 5 mm | Not published | Not published | Certified | 88 mm | glass sash 93 mm |
| Trango 58 Series | Thermally broken | Double glazed unit: 5 mm / 20 mm air / 5 mm | 1.99 W/m²K | Rw 35 | Certified | 56.9 mm | glass sash 43.5 mm |
| Trango 110 Series | Thermally broken | Double glazed unit: 5 mm / 20 mm air / 5 mm | 1.99 W/m²K | Rw 35 | AZHK260110 | 110 mm | glass sash 43.5 mm |
| Trango 113 Series | Thermally broken | Double glazed unit: 5 mm / 27 mm air / 5 mm | 1.99 W/m²K | Rw 35 | Certified | 111.5 mm | screen sash 56 mm, glass sash 72 mm |
Technical documents for this range.
Drawings, manuals and certificates are issued on request, so the revision you receive is the current one.
Not sure which system fits?
Send your drawings and we will specify the right one for the opening.
