Thermal performance

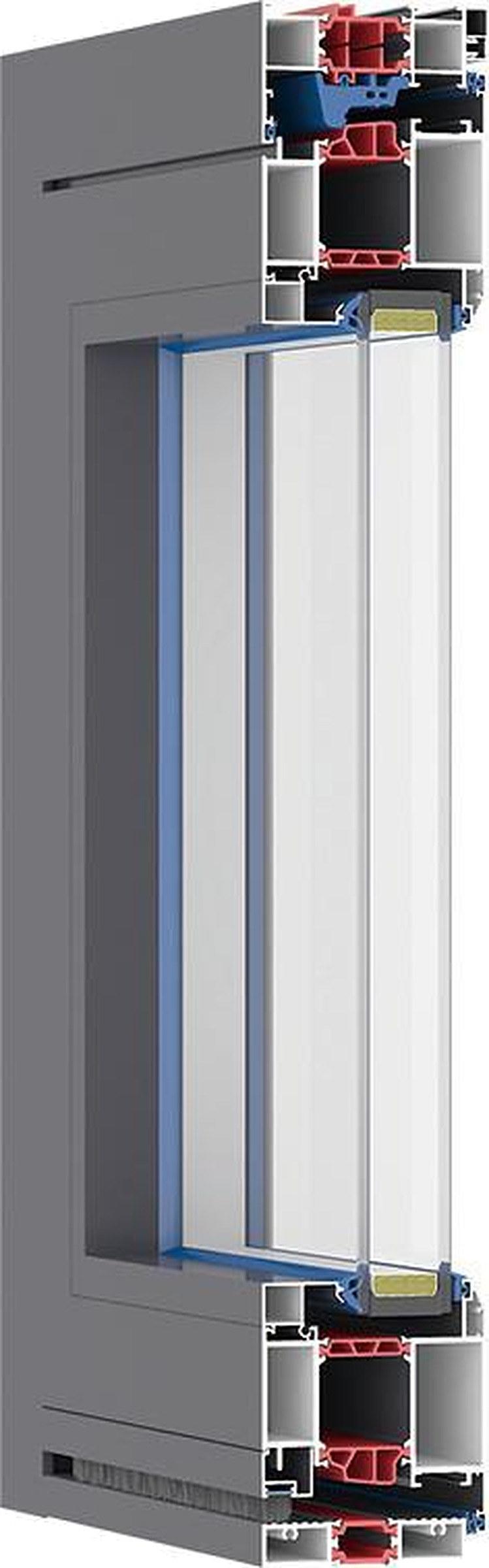

A thermally broken frame holds temperature across the profile.
Slim sightlines
glass sash 93 mm. More glass in the opening, less frame across the view.
Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Glazing options
Double glazed unit: 5 mm / 27 mm air / 5 mm
Specifications
- Profile wall thickness
- frame 1.8 mm, sash 2.2 mm
- Frame width
- 88 mm
- Sightline
- glass sash 93 mm
- Available opening styles
- single door, double door, unequal double door
- Opening direction
- glass sash outward
- Standard glass
- 5+27A+5 (fluorocarbon-coated aluminium spacer)
- Glazing method
- Double glazed unit: 5 mm / 27 mm air / 5 mm
- Thermal barrier
- Thermally broken
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
This system has been tested and we hold the report. The figures are not transcribed onto this page, so rather than publish a number we cannot show the working for, ask us and we will send you the report itself.
Request the test reportTechnical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Hinged Doors (Outward Opening)

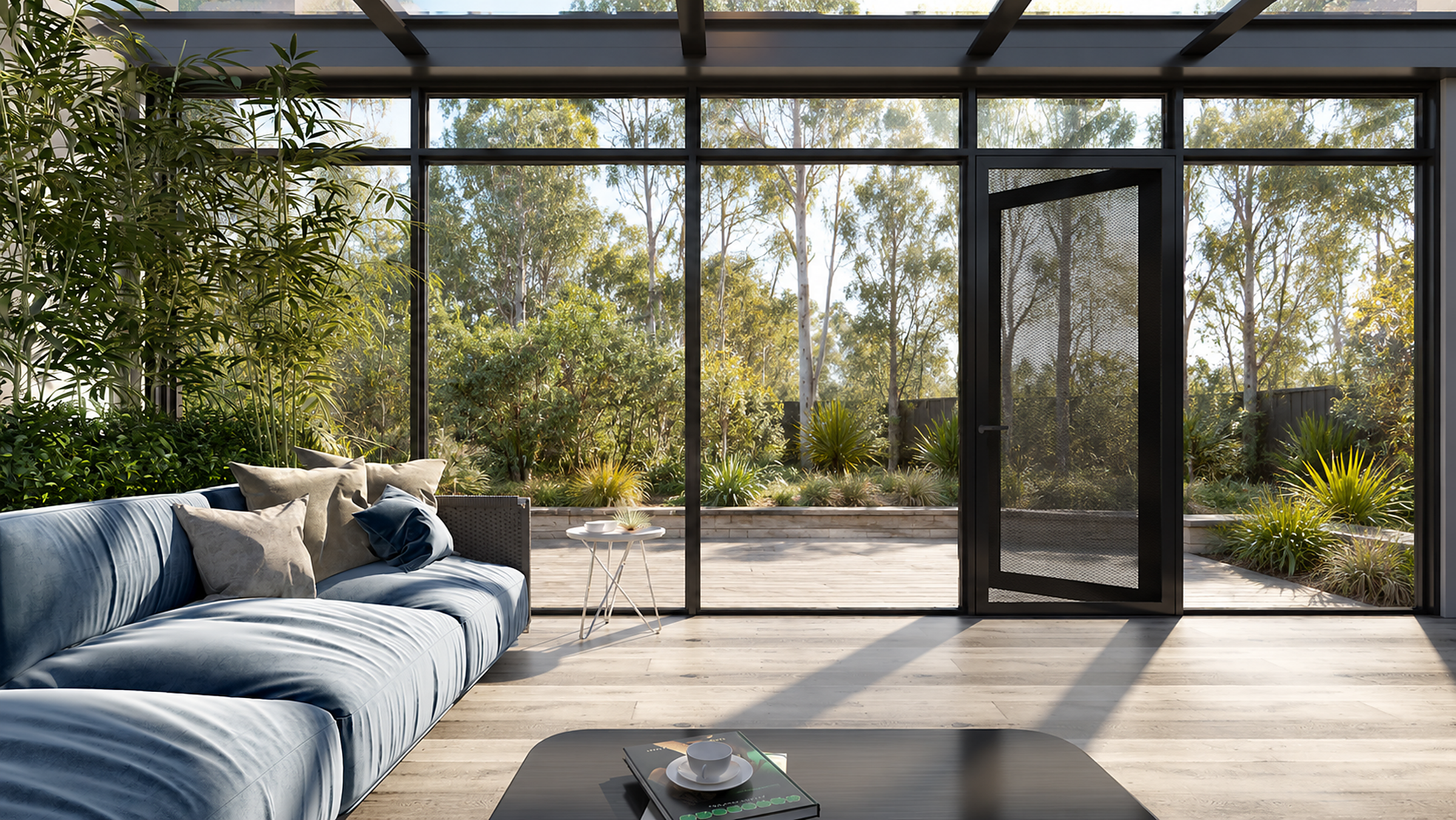

Trango 109 Series Outward Hinged Door with Integrated Screen
A thermally broken aluminium hinged door with integrated flyscreen and multiple opening modes, balancing ventilation, insulation and insect protection.
View Product

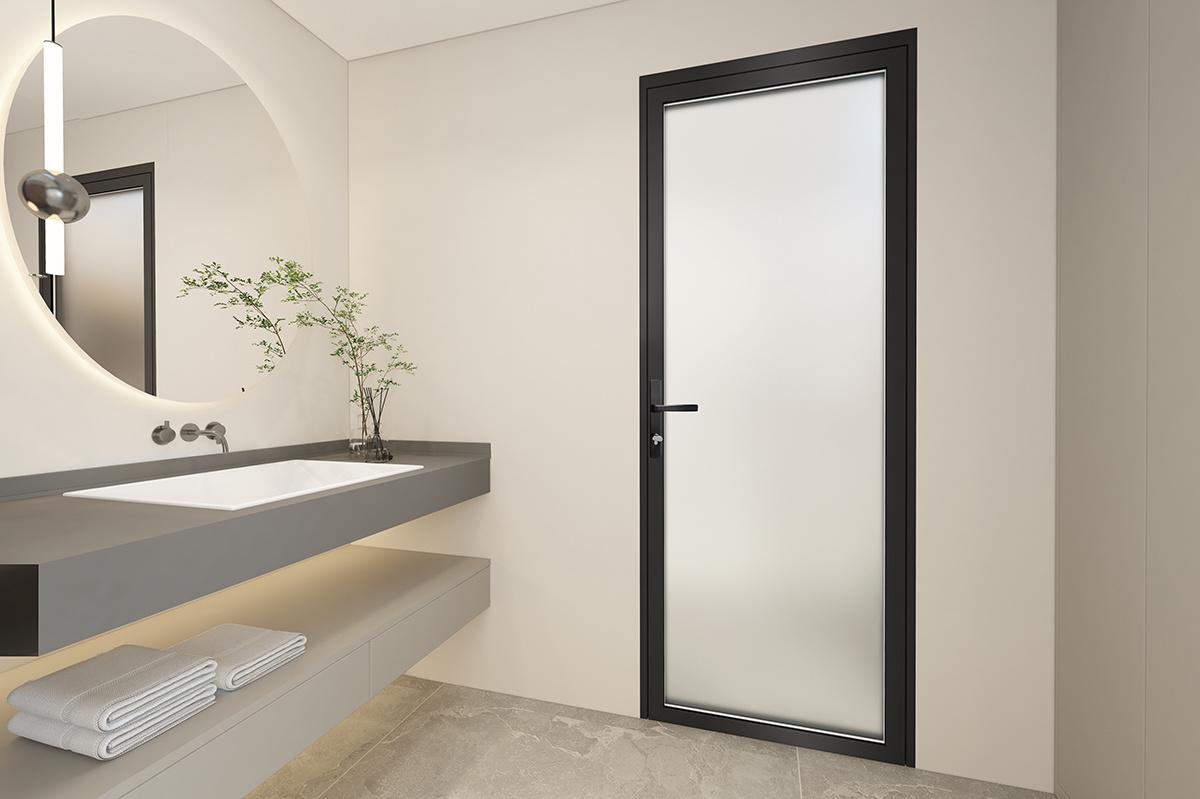

Trango 58 Series Outward Hinged Door
