Thermal performance
A none (non-thermally-broken) thermal barrier holds temperature across the frame.
Integrated insect screen
Screening built into the frame rather than added over it.
Slim sightlines
68 sash 68 mm, 100 sash 100 mm. More glass in the opening, less frame across the view.

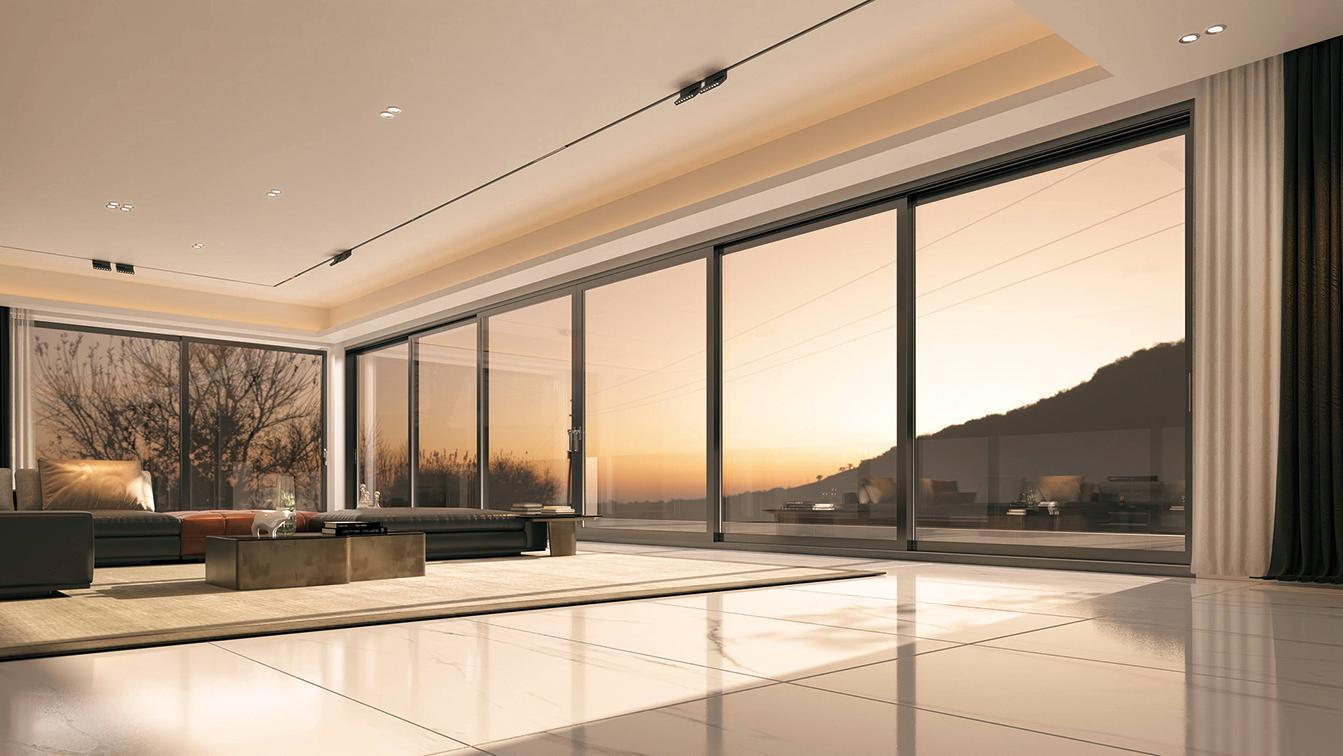

Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Specifications

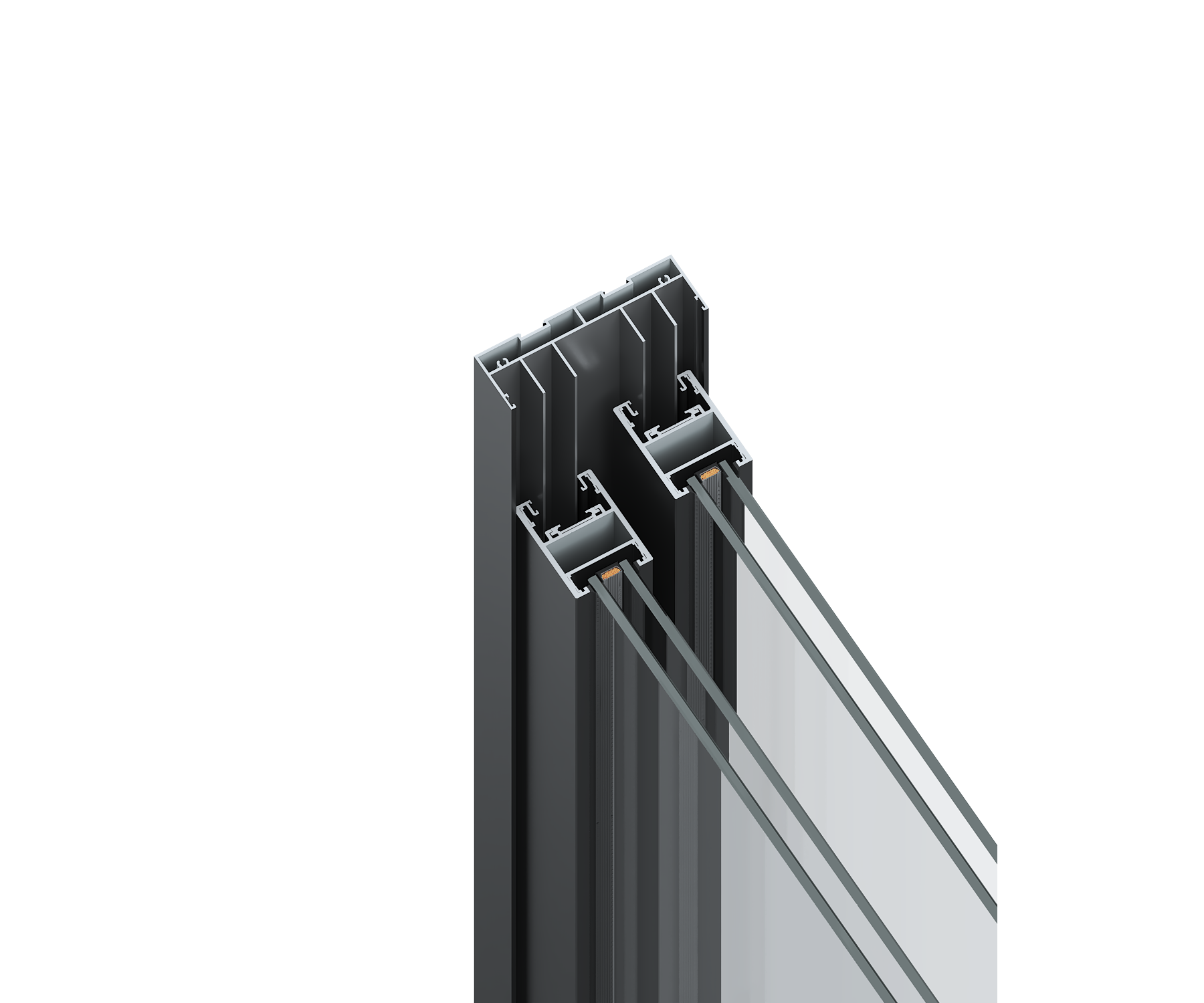

- Profile wall thickness
- outer frame 1.6 mm, 68 sash 3.0 mm, 100 sash 2.0 mm

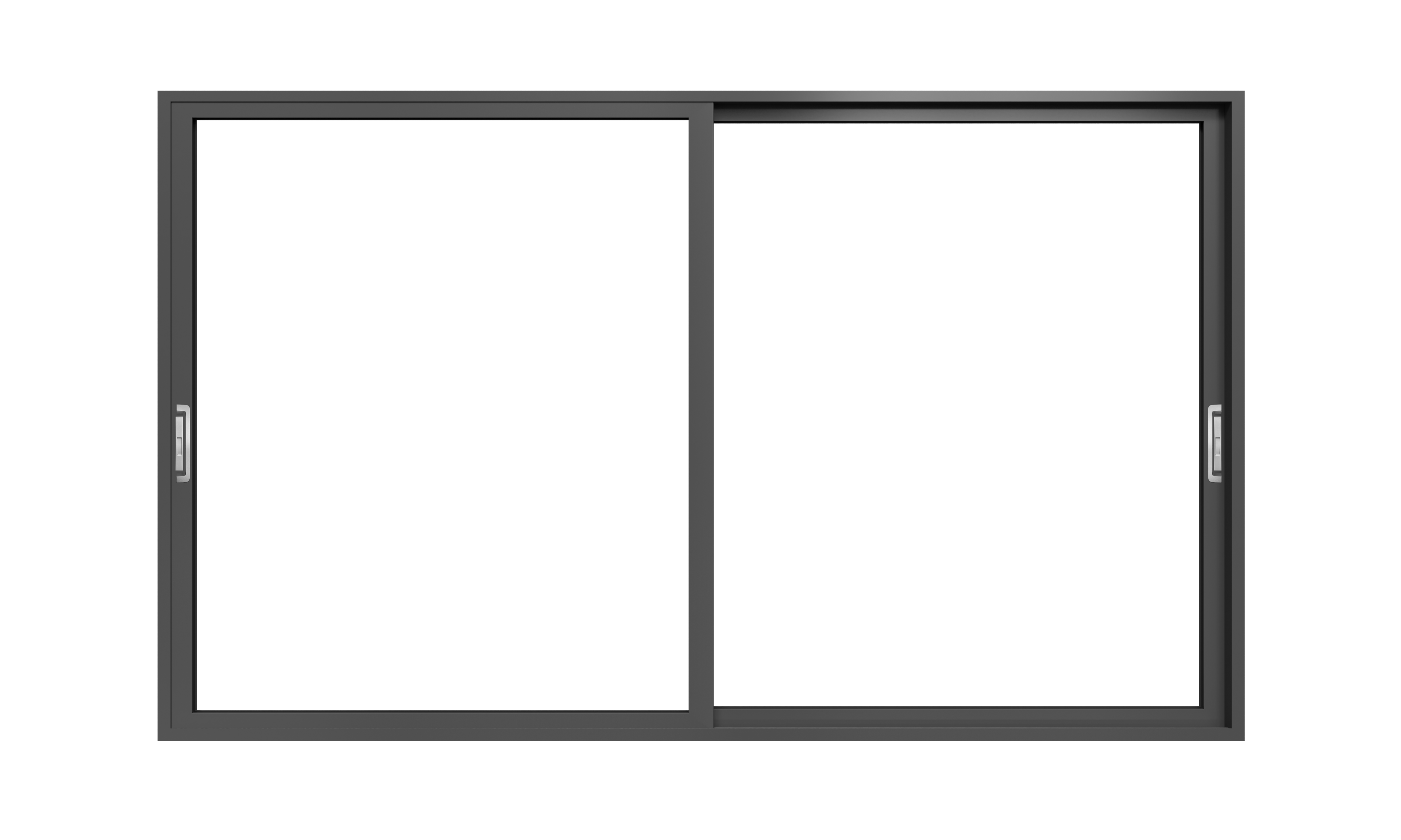

- Frame width
- two-track 126.5 mm, three-track 190.5 mm
- Sightline
- 68 sash 68 mm, 100 sash 100 mm
- Standard glass
- 5+18A+5 (fluorocarbon-coated aluminium spacer)
- Thermal barrier width
- none (non-thermally-broken)
- Standard screen mesh
- 0.7 mm, 11 mesh stainless steel

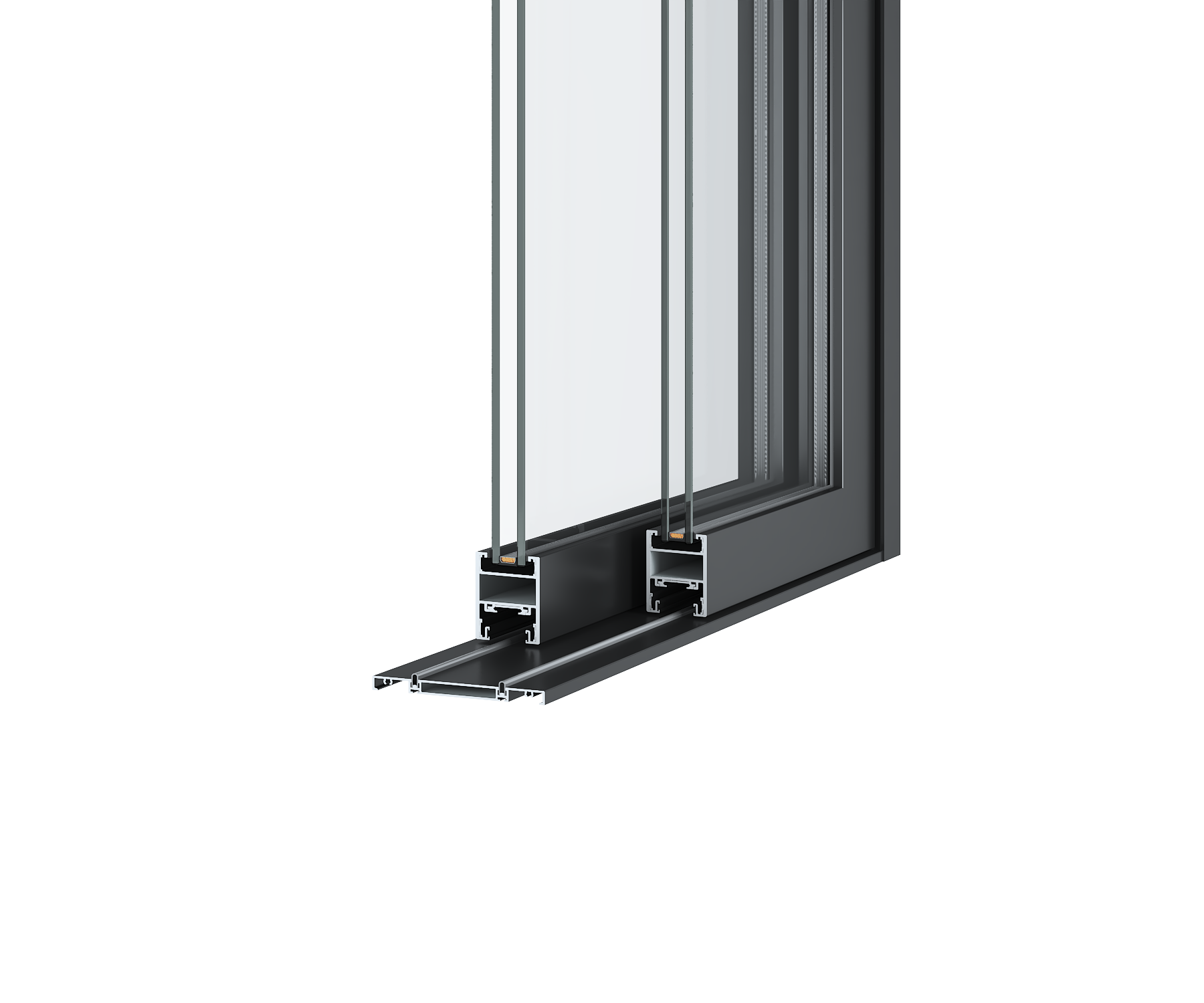

- Standard pulley
- recessed amber pulley / POK steel-clad anti-swing pulley

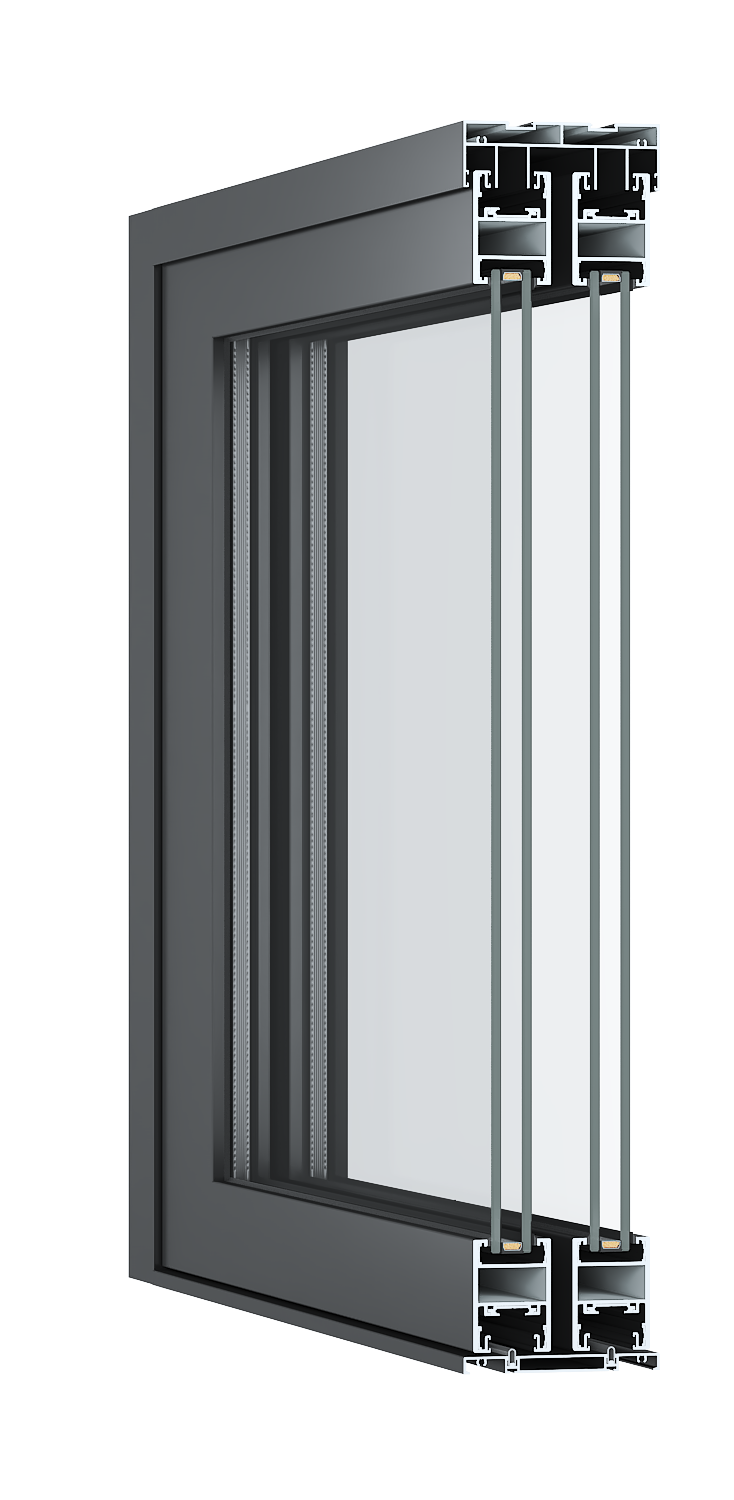

- Glazing method
- Double glazed unit: 5 mm / 18 mm air / 5 mm
- Thermal barrier
- Thermally broken, none (non-thermally-broken)
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
This system has been tested and we hold the report. The figures are not transcribed onto this page, so rather than publish a number we cannot show the working for, ask us and we will send you the report itself.
Request the test reportTechnical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
