Sliding Doors
Sleek, space-saving panels that glide effortlessly aside.
6 systems in this range.
Trango 150 Series
Trango 150 Series Heavy-Duty Sliding Door
A heavy-duty thermally broken aluminium sliding door for large openings, with large-handle mortise locking and big glass panels for indoor-outdoor living.
- Frame width
- two-track 150 mm, three-track 225 mm
- Sightline
- wide sash 88 mm, middle interlock 40 mm
- Thermal barrier
- Thermally broken
Trango 4012T Series
Trango 4012T Series Ultra-Narrow Sliding Door
An ultra-narrow multi-track aluminium sliding door (2-5 tracks) that stacks away for expansive, minimalist openings.
- Frame width
- two-track 95 mm, three-track 141 mm, four-track 187 mm, five-track 238 mm

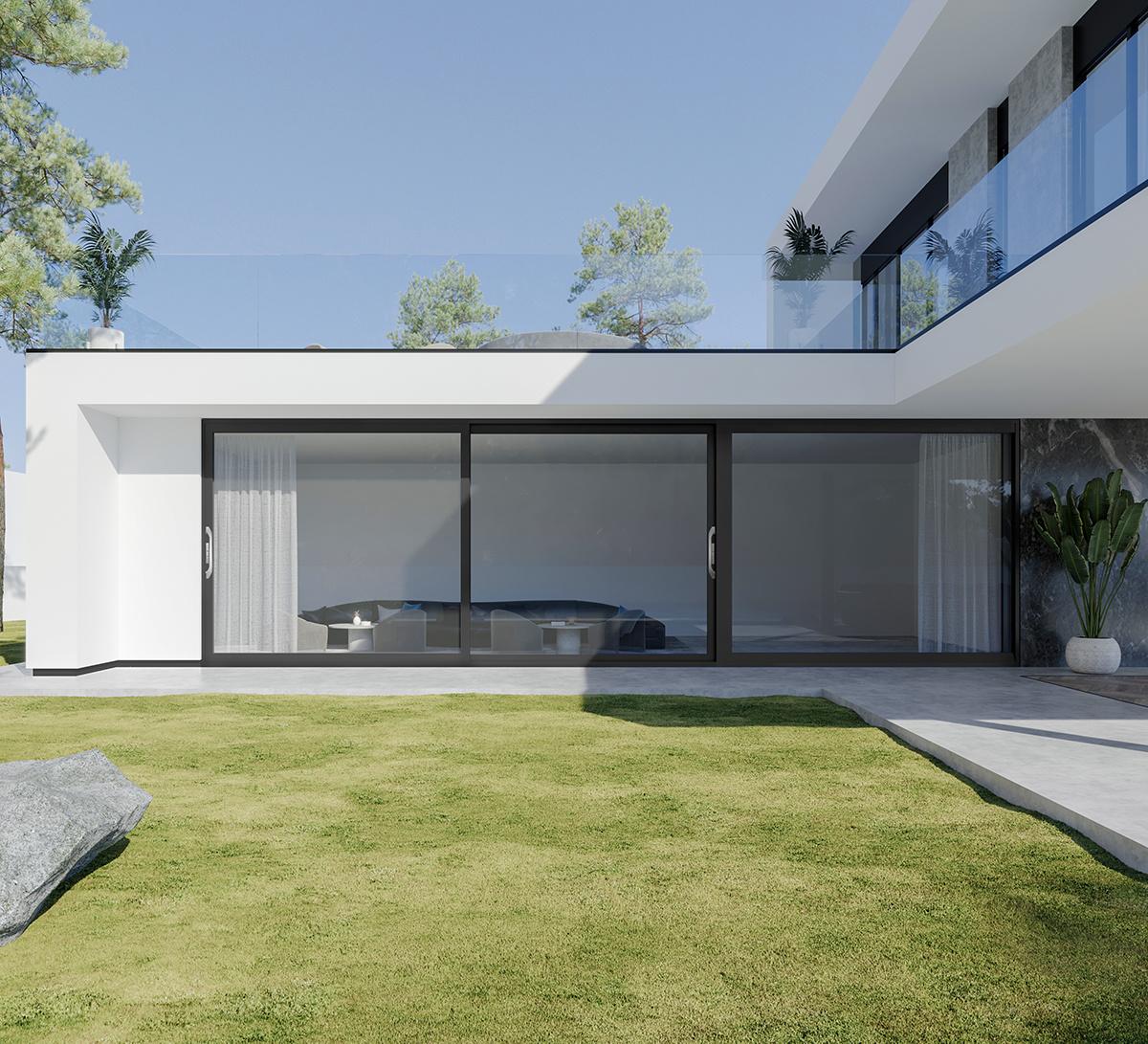

Trango L6 Series
Trango L6 Series Heavy-Duty Sliding Door
A heavy-duty aluminium sliding door (non-thermally-broken) engineered for very large, weighty glass panels with anti-swing pulleys.
- Frame width
- two-track 126.5 mm, three-track 190.5 mm
- Sightline
- 68 sash 68 mm, 100 sash 100 mm
- Thermal barrier
- Thermally broken

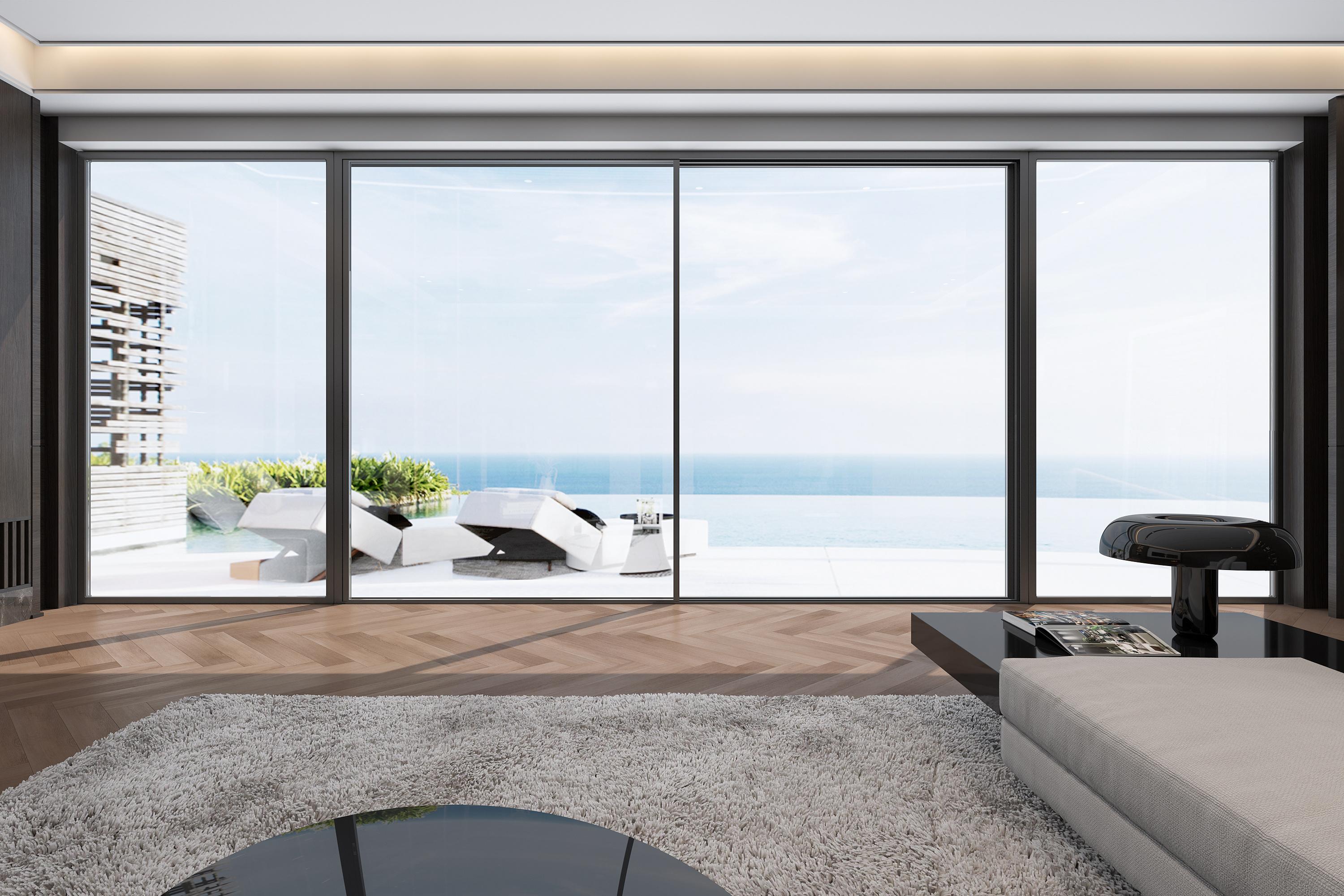

Trango 138 Series
Trango 138 Series Panoramic Sliding Door
A thermally broken panoramic sliding door with ultra-slim 22 mm interlocks and an optional roller flyscreen for uninterrupted views.
- Frame width
- two-track 138 mm (164 mm with roller screen); three-track three-sash 221 mm (247 mm with roller screen); three-track two-sash with sliding screen 172 mm
- Sightline
- middle stile 22 mm
- Thermal barrier
- Thermally broken
Trango 110 Series
Trango 110 Series Sliding Door
A thermally broken sliding door on a 110 mm frame, available in two, three and four-track configurations for wide openings. Tested to AS 2047 at 1600 Pa serviceability and 4000 Pa ultimate wind pressure.
- Frame width
- two-track 110 mm, three-track 165 mm, four-track 220 mm
- Thermal barrier
- Thermally broken
Trango 105 Series
Trango 105 Series Sliding Door
A non-thermally-broken sliding door on a slim 105 mm frame, available in two, three and four-track configurations. Its AS 2047 test returned 1000 Pa water resistance, the highest figure on any Trango system published here.
- Frame width
- two-track 105 mm, three-track 161 mm, four-track 217 mm
- Thermal barrier
- Not thermally broken
The range, side by side
The same fields for every system in this range. Every system is certified to AS 2047 and every one has been tested; where a report number is listed, that document is the one on file. A figure shown as not published is one we have not transcribed onto this site. Ask and we will send you the report.
| System | Thermal break | Glazing | U-value (Uw) | Acoustic | AS 2047 | Frame width | Sightline |
|---|---|---|---|---|---|---|---|
| Trango 150 Series | Thermally broken | Double glazed unit: 5 mm / 20 mm air / 5 mm | Not published | Not published | Certified | two-track 150 mm, three-track 225 mm | wide sash 88 mm, middle interlock 40 mm |
| Trango 4012T Series | Not published | Double glazed unit: 5 mm / 9 mm air / 5 mm | Not published | Not published | Certified | two-track 95 mm, three-track 141 mm, four-track 187 mm, five-track 238 mm | Not published |
| Trango L6 Series | Thermally broken | Double glazed unit: 5 mm / 18 mm air / 5 mm | Not published | Not published | Certified | two-track 126.5 mm, three-track 190.5 mm | 68 sash 68 mm, 100 sash 100 mm |
| Trango 138 Series | Thermally broken | Double glazed unit: 5 mm / 20 mm air / 5 mm | Not published | Not published | Certified | two-track 138 mm (164 mm with roller screen); three-track three-sash 221 mm (247 mm with roller screen); three-track two-sash with sliding screen 172 mm | middle stile 22 mm |
| Trango 110 Series | Thermally broken | Double glazed unit: 5 mm glass / 15 mm air / 5 mm glass | 1.99 W/m²K | Rw 30 | AZHK260410 | two-track 110 mm, three-track 165 mm, four-track 220 mm | Not published |
| Trango 105 Series | Not thermally broken | Double glazed unit: 5 mm glass / 15 mm air / 5 mm glass | 3.52 W/m²K | Rw 30 | AZHK260417 | two-track 105 mm, three-track 161 mm, four-track 217 mm | Not published |
Technical documents for this range.
Drawings, manuals and certificates are issued on request, so the revision you receive is the current one.
Not sure which system fits?
Send your drawings and we will specify the right one for the opening.
