Thermal performance
A thermally broken frame holds temperature across the profile.
Slim sightlines
glass sash 41 mm. More glass in the opening, less frame across the view.
Glazing options
Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass
Certified performance
Certified to AS 2047. Certificate available on request.
Specifications
- Profile wall thickness
- 1.6 mm
- Frame width
- 83 mm
- Sightline
- glass sash 41 mm
- Available opening styles
- single hung, double hung
- Opening direction
- glass sash and screen sash lift vertically
- Standard glass
- 5+9A+5 (fluorocarbon-coated aluminium spacer)
- Thermal insulation
- American-style poured insulation structure
- Glazing method
- Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass
- Thermal barrier
- Thermally broken
- Certification
- AS 2047, AS 1288, NCC 2022. Report AZHK260412.
Performance
1.87W/m²K
U-value (Uw)
Whole-of-window thermal transmittance.
700Pa
Water resistance
Tested for protection in heavy rain.
5.0kPa
Wind pressure
Serviceability under design wind load.
Rw 30
Acoustic rating
Weighted sound reduction across the system.
1600Pa
Wind pressure (SLS)
Serviceability: everyday strong wind, with the system still operating normally.
4000Pa
Wind pressure (ULS)
Ultimate: the once-in-decades storm the system is tested not to fail under.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Double-Hung Windows
Trango 83 Series Double-Hung Window (Slimline)
An aluminium double-hung window with smooth vertical-lift sashes and an integrated flyscreen, suited to heritage and traditional Australian homes.
View Product

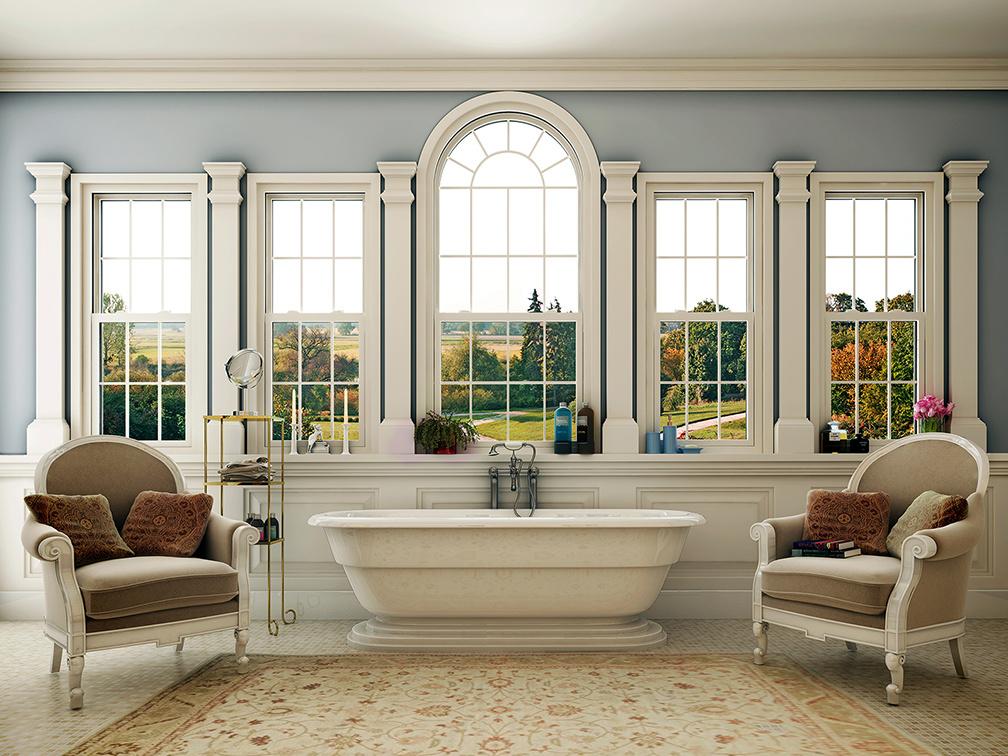

Trango 70 Series Heavy-Duty Single-Hung Window
