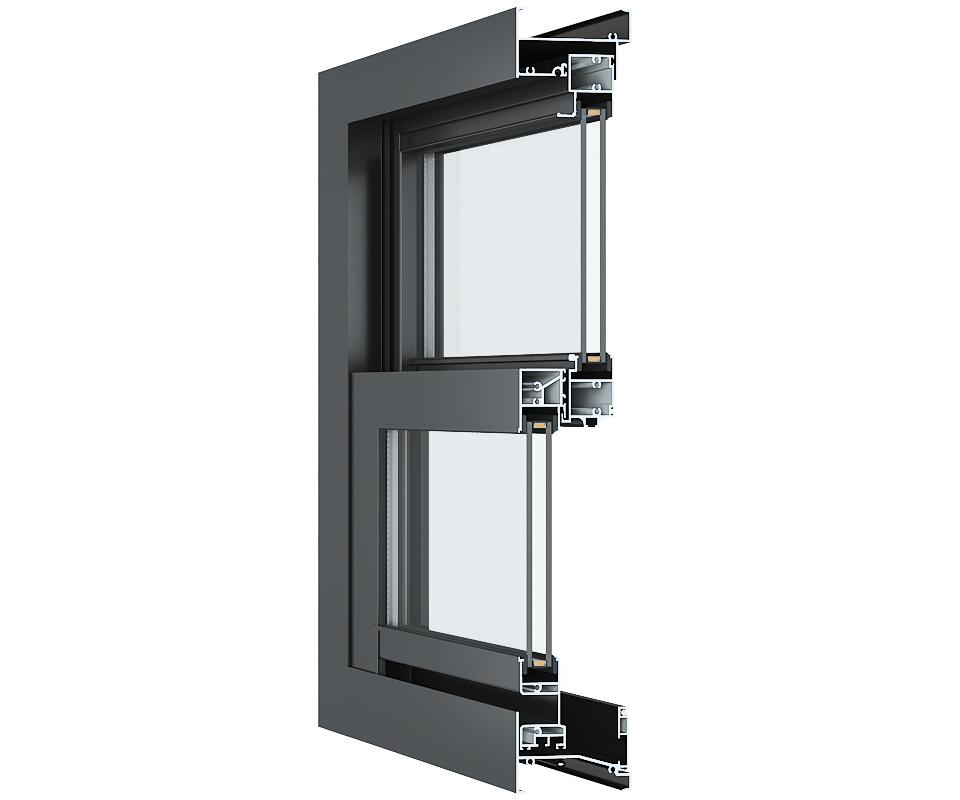

Thermal performance
A 10 mm thermal barrier holds temperature across the frame.

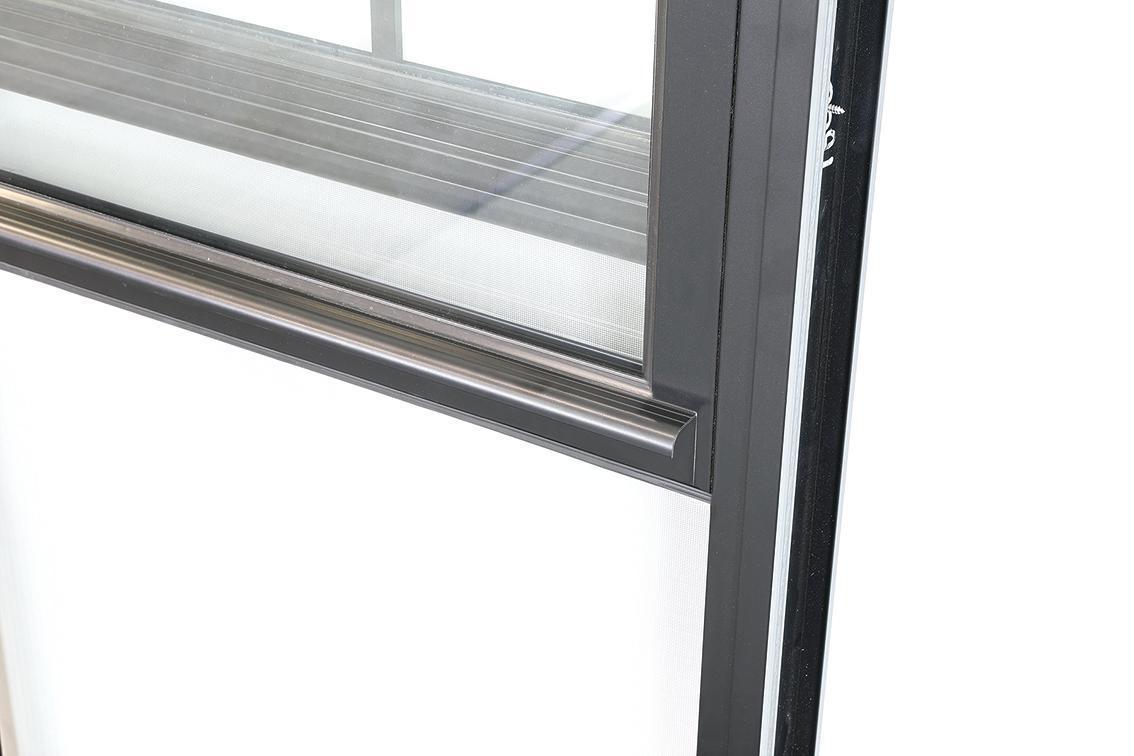

Slim sightlines
glass sash 43 mm. More glass in the opening, less frame across the view.
Glazing options
Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass
Certified performance
Certified to AS 2047. Certificate available on request.
Specifications
- Profile wall thickness
- 1.5 mm
- Frame width
- 83 mm
- Sightline
- glass sash 43 mm
- Available opening styles
- single hung, double hung
- Opening direction
- glass sash and screen sash lift vertically
- Standard glass
- 5+9A+5 (fluorocarbon-coated aluminium spacer)
- Thermal barrier width
- 10 mm
- Glazing method
- Double glazed unit: 5 mm glass / 9 mm air / 5 mm glass
- Thermal barrier
- Thermally broken, 10 mm
- Certification
- AS 2047, AS 1288, NCC 2022. Certificate available on request.
Performance
This system has been tested and we hold the report. The figures are not transcribed onto this page, so rather than publish a number we cannot show the working for, ask us and we will send you the report itself.
Request the test reportTechnical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
More Double-Hung Windows
Trango 83 Series Double-Hung Window
A classic aluminium double-hung window with American-style poured insulation, combining traditional vertical-sliding charm with modern efficiency.
View Product

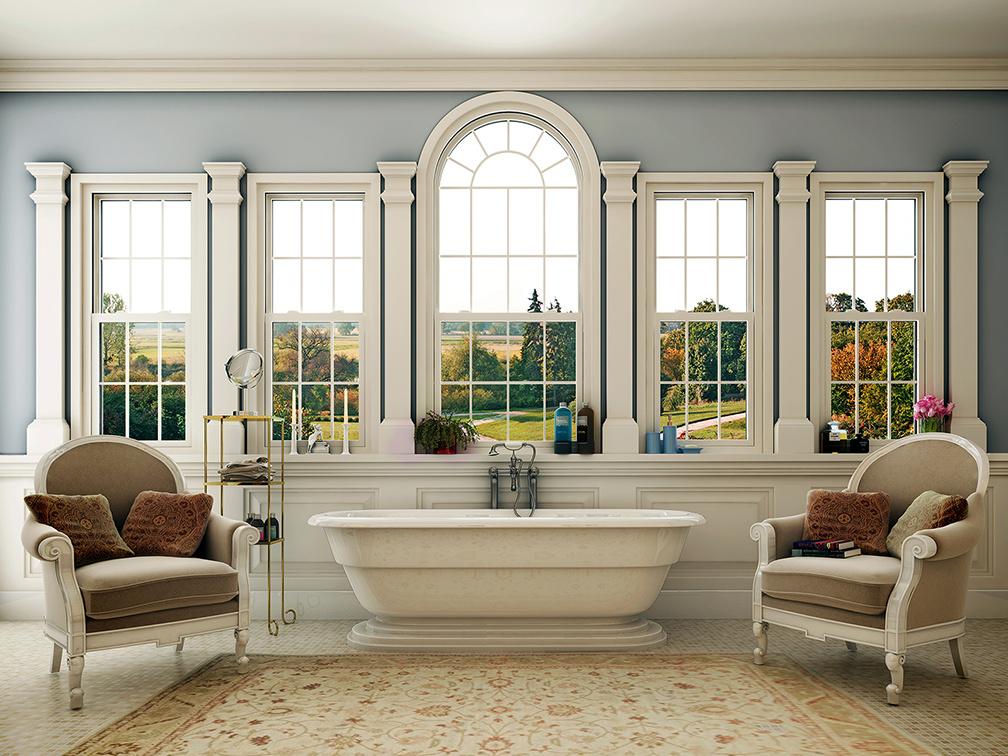

Trango 70 Series Heavy-Duty Single-Hung Window
