Built for large openings
Heavy-duty profiles and hardware rated for panel weight over time.
Glazing options
Double glazed unit: 5 mm glass / 15 mm air / 5 mm glass
Certified performance
Certified to AS 2047. Certificate available on request.
Specifications
- Aluminium type
- 6063-T5
- Profile wall thickness
- 1.8 mm

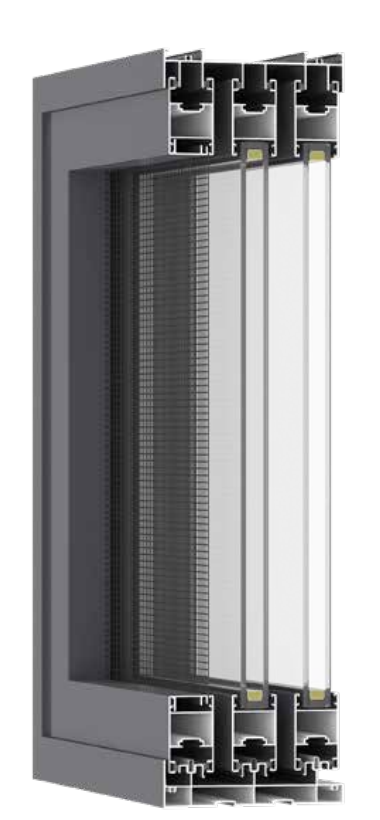

- Frame width
- two-track 105 mm, three-track 161 mm, four-track 217 mm
- Standard glass
- 5+15A+5
- Available opening styles
- two, three, four and five-track sliding
- Surface treatment
- powder coated
- Glazing method
- Double glazed unit: 5 mm glass / 15 mm air / 5 mm glass
- Certification
- AS 2047, AS 1288, NCC 2022. Report AZHK260417.
Performance
3.52W/m²K
U-value (Uw)
Whole-of-window thermal transmittance.
450Pa
Water resistance
Tested for protection in heavy rain.
5.0kPa
Wind pressure
Serviceability under design wind load.
Rw 30
Acoustic rating
Weighted sound reduction across the system.
1600Pa
Wind pressure (SLS)
Serviceability: everyday strong wind, with the system still operating normally.
4000Pa
Wind pressure (ULS)
Ultimate: the once-in-decades storm the system is tested not to fail under.
Figures are from manufacturer testing and vary with configuration and glazing. Project-specific results are confirmed at quotation.
Technical documents
Drawings, certificates and installation detail for this system are issued on request, so the revision you receive is the current one.
